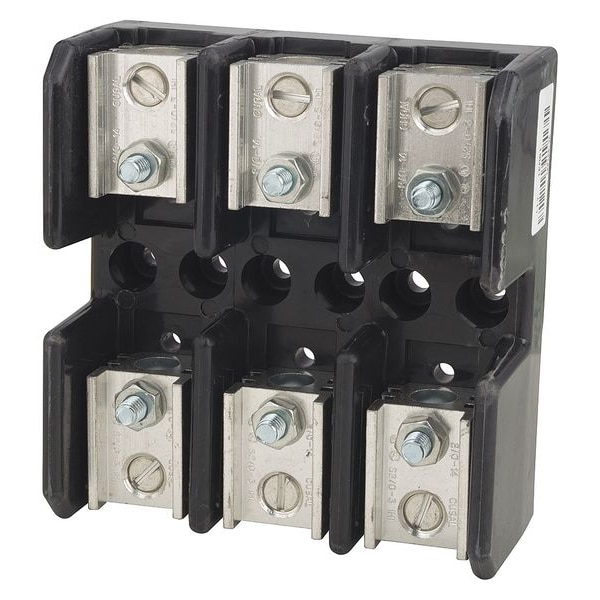

Open Fuse Block, T UL Class, 3 Poles, 61 to 100A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | T |
| Series | T600 |
| Number of Poles | 3 |
| Amp Range | 61 to 100A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Open |
| Body Material | Polyester |
| Fuse Type | Industrial |
| Width | 4-1/2 in |
| Length | 3 in |
| For Fuse Series | JJS, LPT |
| Fuse Holder Code | BN |
| Height | 2 in |
| Features | Space Saver |
| For Fuse Size | 2-15/16 in L x 13/16 in dia, 2-61/64 in L x 3/4 in dia |
| Fits Fuse Type | Industrial |
| Wire Range | 14 AWG to 2/0 AWG |
| Weight | 1.482 lb |
| Short Circuit Current (KA) | 200 kA |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
