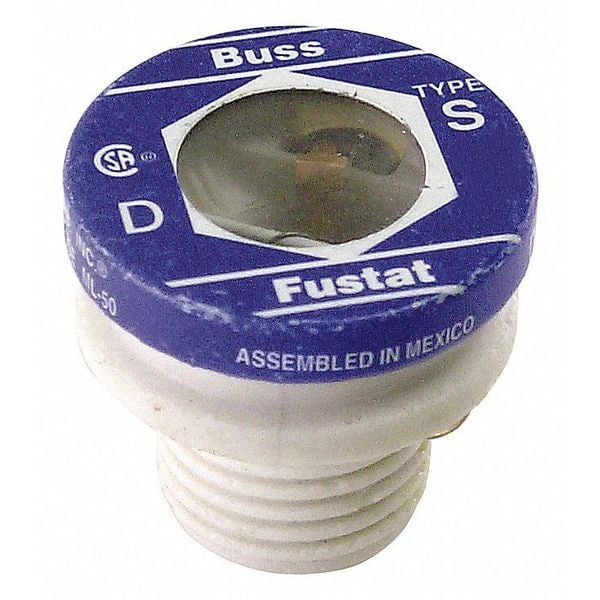

Plug Fuse, S Series, Time-Delay, 30A, 125V AC, Indicating, 10kA at 125V AC, 4 PK
| Item | Plug Fuse |
|---|---|
| Series | S |
| Speed | Time-Delay |
| Amps | 30A |
| AC Voltage Rating | 125V AC |
| Visual Indication | Indicating |
| Interrupt Rating | 10 kA @ 125 V AC |
| Body Style | Screw-In |
| Body Material | Ceramic |
| Equivalent Brand and Series | Bussmann S, Littelfuse S, Littelfuse SLO, Littelfuse SOO, Mersen S |
| Fits Fuse Block Style | Rejection |
| DC Voltage Rating | Not Rated |
| Length | 1.15 in |
| Fuse Size | 1.15 in L x 1.2 in H |
| Equivalent Series | S, SLO, SOO |
| Element | Dual |
| Standards | CE, UL 248-11 Guide JFHR, CSA Class 1423-01 |
| Functionally Equal To | Littelfuse S, SLO, SOO, Mersen/Ferraz Shawmut S |
| Weight | 0.4 lb |
| Mounting | Threaded |
| Package Quantity | 4 |
