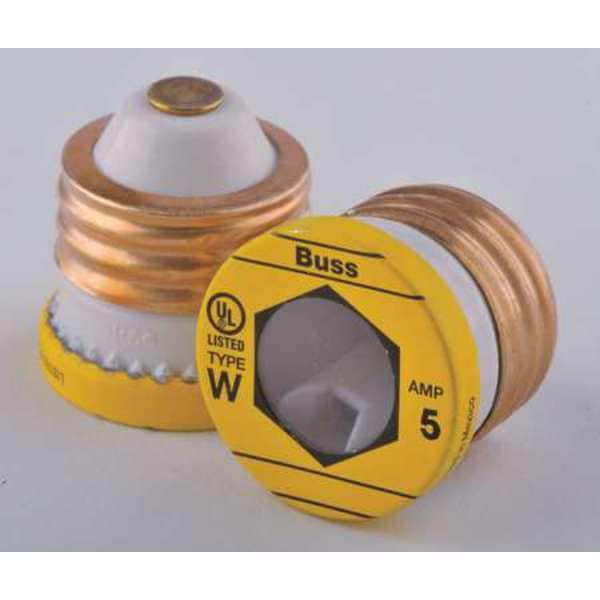

Plug Fuse, W Series, Fast-Acting, 5A, 125V AC, Indicating, 10kA at 125V AC, 4 PK
| Item | Plug Fuse |
|---|---|
| Series | W |
| Speed | Fast-Acting |
| Amps | 5A |
| AC Voltage Rating | 125V AC |
| Visual Indication | Indicating |
| Interrupt Rating | 10 kA @ 125 V AC |
| Body Style | Screw-In |
| Body Material | Plastic |
| Equivalent Brand and Series | Bussmann W, Littelfuse WOO, Mersen GW |
| Fits Fuse Block Style | Edison |
| DC Voltage Rating | Not Rated |
| Functionally Equal To | Littelfuse WOO, Mersen/Ferraz Shawmut GW |
| Standards | CE, UL 248-11 Guide JEFV, File E12112 |
| Element | Single |
| Diameter | 1.16 in |
| Length | 1.3 in |
| Equivalent Series | GW, W, WOO |
| Fuse Size | 1.3 in L x 1.16 in D |
| Weight | 0.5 lb |
| Package Quantity | 4 |
