Semiconductor Fuse, FWH-B Series, 200A, Fast-Acting, 500V AC, Bolt-On

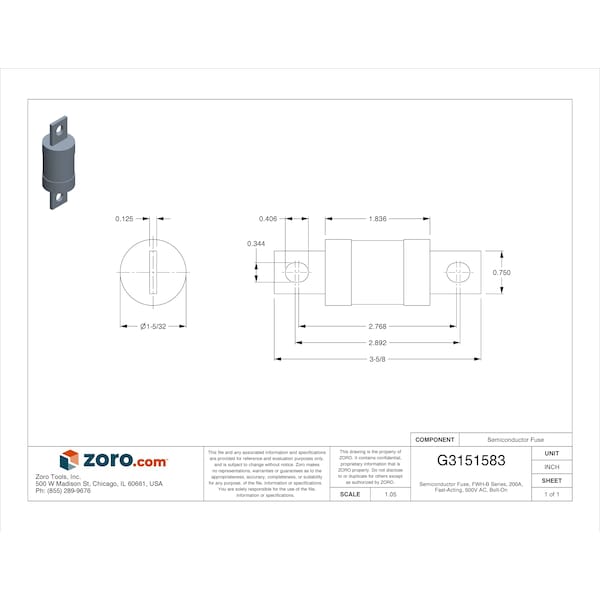

| CAD Available | Yes |
|---|---|
| Item | Semiconductor Fuse |
| Series | FWH-B |
| Amps | 200A |
| Speed | Fast-Acting |
| AC Voltage Rating | 500V AC |
| DC Voltage Rating | 500V DC |
| Body Style | Bolt-On |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 200kA at 500V AC, 50kA at 500V DC |
| Body Material | Ceramic |
| Diameter | 1-5/32 in |
| Length | 3-5/8 in |
| Equivalent Brand and Series | A50QS, Bussmann FWH, Littelfuse L50S, Mersen A50P |
| Equivalent Series | FWH, A50P, A50QS, L50S |
| Fits Fuse Block Style | Non-Rejection |
| Element | Single |
| Standards | CE, CSA Certified, UL Recognized |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Speed | Fast Acting |
| Rejection / Nonrejection | Nonrejection |
| Indicating / Nonindicating | Nonindicating |
| Compatible Fuse Block Series | 1BS |
| Mounting | Stud |
| Weight | 152 g |
| Package Quantity | 1 |
