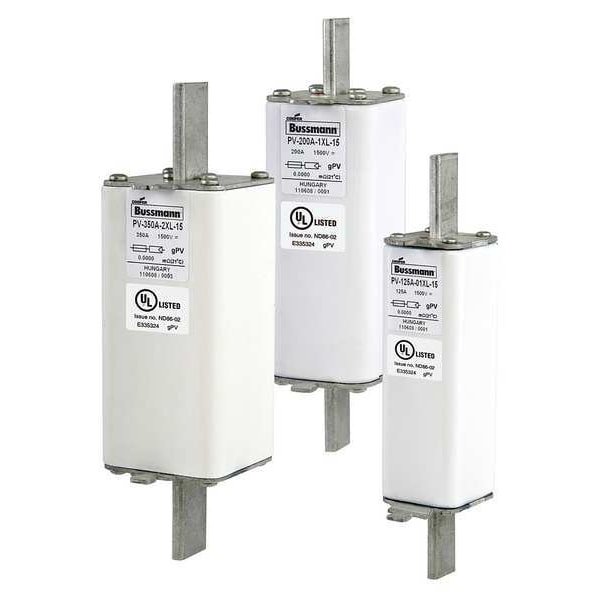

Solar Fuse, PV-2XL Series, 250A, Fast-Acting, Not Rated, Bolt-On
| Item | Solar Fuse |
|---|---|
| Series | PV-2XL |
| Amps | 250A |
| Speed | Fast-Acting |
| AC Voltage Rating | Not Rated |
| DC Voltage Rating | 1,000V DC |
| Body Style | Bolt-On |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 33kA at 1000V DC |
| Body Material | Ceramic |
| Diameter | 2-11/32 in |
| Length | 7-1/2 in |
| Equivalent Brand and Series | Bussmann PV-2XL |
| Equivalent Series | PV-2XL |
| Fits Fuse Block Style | Non-Rejection |
| Element | Single |
| Class | gPV/UL PV |
| Rejection / Nonrejection | Nonrejection |
| Indicating / Nonindicating | Nonindicating |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| In Line Fuseholder | NO |
| Standards | E335324, IEEC 60269-6, UL 2579 |
| Fuse Speed | Fast Acting |
| Fuse Holder Code | SD2XL-S |
| Weight | 2,657 g |
| Package Quantity | 1 |
