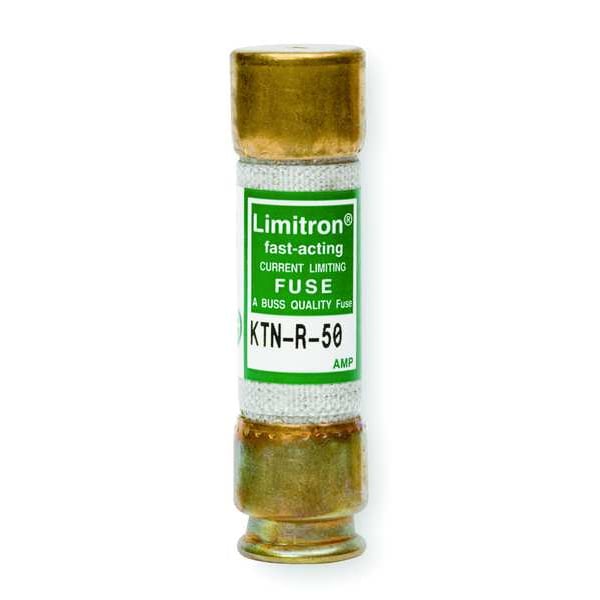

UL Class Fuse, RK1 Class, KTN-R Series, Fast-Acting, 50A, 250V AC, Non-Indicating
| Class | RK1 |
|---|---|
| Series | KTN-R |
| Speed | Fast-Acting |
| Amps | 50A |
| AC Voltage Rating | 250V AC |
| DC Voltage Rating | 250V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 250V DC, 200kA at 250V AC |
| Body Style | Cylindrical |
| Body Material | Melamine |
| Length | 8-5/8 in |
| Diameter | 2-1/16 in |
| Equivalent Brand and Series | Bussmann KTN-R, Littelfuse KLNR, Mersen A2K-R |
| Equivalent Series | A2K-R, KLRN, KTN-R |
| Fits Fuse Block Style | Rejection |
| Compatible Fuse Block Series | R250, RM250, RM251, RM252, RM254, RM256, RM600, RM601, RM602, RM604, RM606 |
| Item | UL Class Fuse |
| Rejection / Nonrejection | Rejection |
| Fuse Holder Code | K |
| Element | Single |
| Standards | CE, UL 248-12 Guide JDDZ, File E4273, CSA C22.2 No. 248.12, Class 1422-02, File 53787 |
| Fuse Speed | Fast Acting |
| Length (Straight Wireway) | 8-5/8 in |
| Weight | 0.9 lb |
| Package Quantity | 1 |
