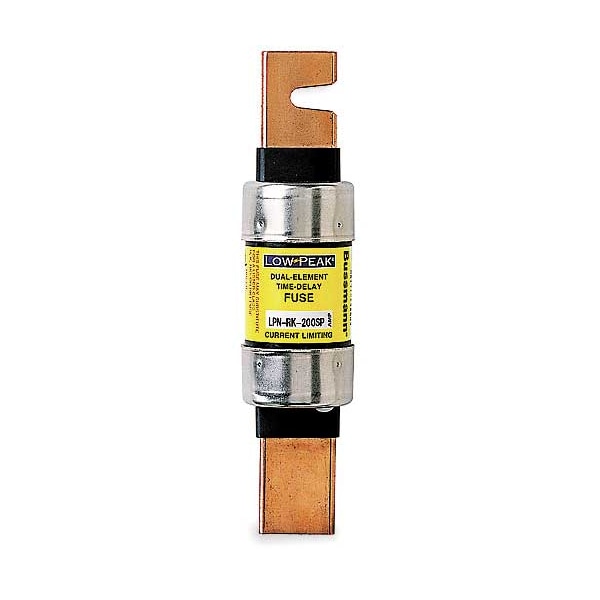

UL Class Fuse, RK1 Class, LPN-RK-SP Series, Time-Delay, 200A, 250V AC, Non-Indicating
| Class | RK1 |
|---|---|
| Series | LPN-RK-SP |
| Speed | Time-Delay |
| Amps | 200A |
| AC Voltage Rating | 250V AC |
| DC Voltage Rating | 250V DC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 250V DC, 300kA at 250V AC |
| Body Style | Blade |
| Body Material | Melamine |
| Length | 7-1/8 in |
| Diameter | 1-9/16 in |
| Equivalent Brand and Series | Bussmann LPN-RK-SP, Littelfuse LLNRK, Mersen A2D-R |
| Equivalent Series | A2D-R, LLNRK, LPN-RK-SP |
| Fits Fuse Block Style | Rejection |
| Compatible Fuse Block Series | HM600, R250 |
| Item | UL Class Fuse |
| Fuse Holder Code | M |
| Element | Dual |
| Functionally Equal To | Littelfuse LLNRK, Mersen/Ferraz Shawmut A2D-R |
| Standards | CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12 |
| Connection Type | Blade End x Blade End |
| Weight | 0.69 lb |
| Package Quantity | 1 |
