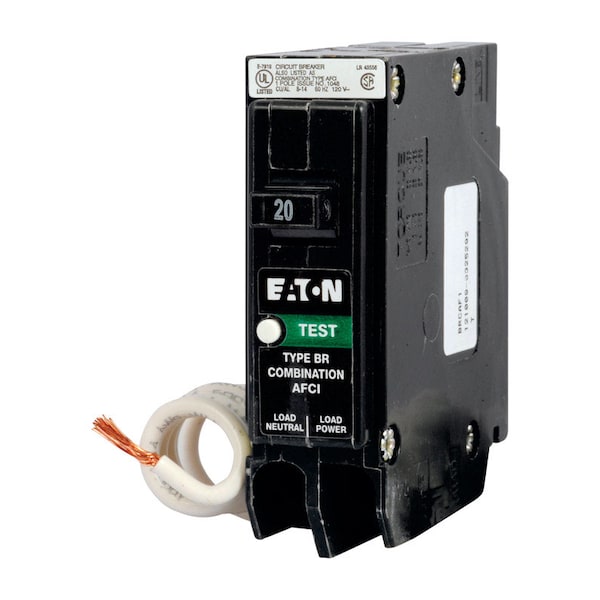

Circuit Breaker, BR Series, 20A, 1 Pole, 120V AC, 10kA
| Item | Circuit Breaker |
|---|---|
| Series | BR |
| Amps | 20A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Max. AIR Rating | 10kA |
| Terminal Connection | Plug On |
| Width | 3-1/2 in |
| Depth | 6 in |
| Height | 1-1/4 in |
| DC Voltage Rating | Not Rated |
| Interrupt Rating | 10 kA |
| Max. Wire Size | 8 AWG (Cu/Al) |
| Standards | UL Listed |
| Min. Wire Size | 14 AWG (Cu/Al) |
| For Use With | Type BR Loadcenters |
| Package Quantity | 1 |
