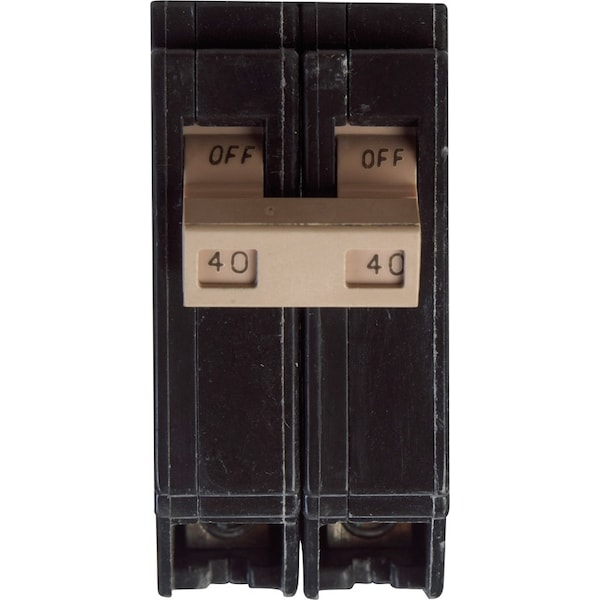

Circuit Breaker, CHF Series, 40A, 2 Pole, 120/240V AC, 10kA
| Item | Circuit Breaker |
|---|---|
| Series | CHF |
| Amps | 40A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Max. AIR Rating | 10kA |
| Trip Type | Trip Flag |
| Width | 3.3 in |
| Depth | 1-1/2 in |
| Height | 2.6 in |
| DC Voltage Rating | Not Rated |
| Min. Wire Size | 10 AWG Cu/Al |
| Max. Wire Size | 1/0 AWG (Cu/Al) |
| Standards | UL 489, HACR Rated |
| Interrupt Rating | 10 kA |
| For Use With | Type CH Loadcenters |
| Compliances | HACR Rated |
| Wire Size | #10-1/0 AWG Cu/Al |
| Certifications | UL 489 |
| Product Name | circuit breaker |
| Package Quantity | 1 |
