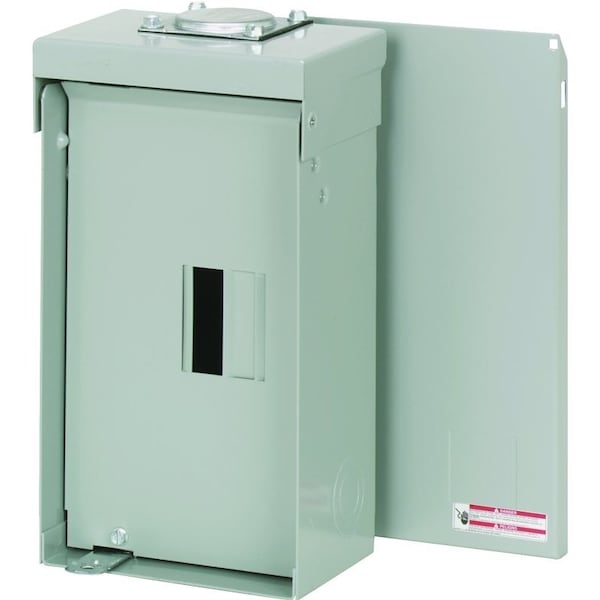

Load Center, BR, 2 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 2 |
| Amps | 100A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 10kA |
| Height | 3.3 in |
| Width | 4-1/2 in |
| Depth | 9-1/2 in |
| Series | BR |
| Included Enclosure Cover | Cover Included |
| Enclosure Material | Metallic |
| Enclosure NEMA Rating | NEMA 3R |
| Bus Material | Aluminum |
| Standards | UL 50 |
| Weight | 6.5 lb |
| Used with | Type BR 1-inch breakers |
| Wire size | #14-1/0 AWG Cu/Al |
| Number Of Circuits | 4 |
| Number of wires | 3 |
| Package Quantity | 1 |
