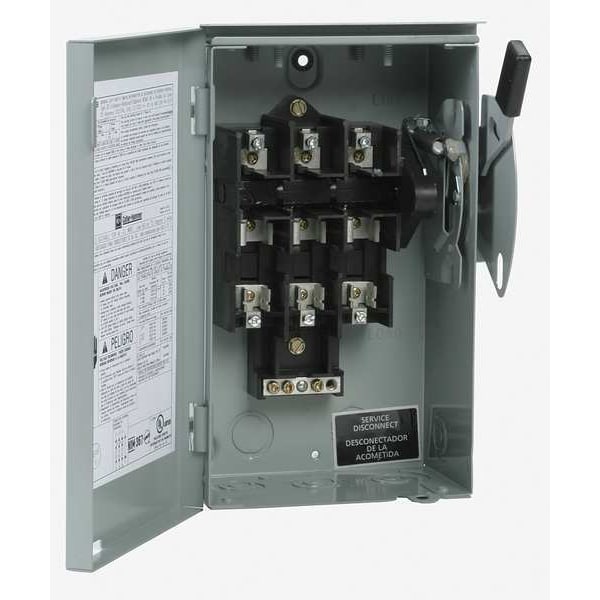

Interruptor de Seguridad con Fusible, Uso General, 240V AC, 3PST, 60 A, NEMA 3R
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 15 HP @ 240 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 60 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvanized Steel |
| Width | 8.7 in |
| Height | 10.9 in |
| For Use With | Class H Fuse |
| Fusible / Nonfusible | Fusible |
| Standards | NEMA KS-1, UL Listed, UL98 |
| Depth | 7.4 in |
| Fuse Type | Class H |
| Enclosure Type | Enclosed |
| Neutral Assembly Included | Yes |
| Type | General duty, cartridge fused |
| Housing Material | Steel |
| Horsepower @ 240V AC | 15 HP |
| NEMA Enclosure Rating | 3R |
| Current Rating | 60 A |
| Environment | Indoor, Outdoor |
| Horsepower @ 600V AC | Not Rated |
| For Fuse Class | Class H, Class R |
| Includes Neutral Assembly | Yes |
| Mounting Style | Surface Mount |
| Enclosure | NEMA 3R |
| Amperage Rating | 60 A |
| Product Length/Depth | 7.38 in |
| Product Width | 8.69 in |
| Voltage Rating | 240 V |
| Product Height | 14.38 in |
| Fuse Configuration | Fusible with neutral |
| Certifications | UL Listed |
| Fuse Class Provision | Class H fuses |
| Product Name | Eaton general duty safety switch |
| Compliances | NEC 230.62 (C) Compliant Barrier |
| Package Quantity | 1 |
