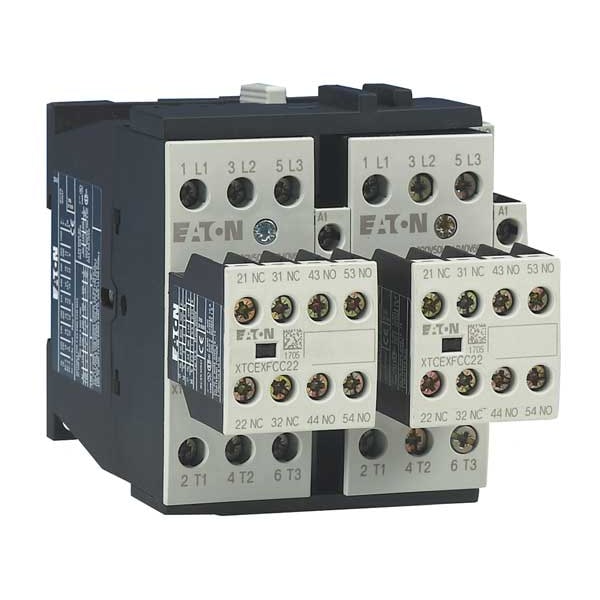

Contactador Magnético IEC, 3 Polos, 120 V AC, 25 A, Reversión: Sí
| Full Load Amps-Inductive | 25 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 45 A |
| Action | Reversing |
| Type | Full voltage reversing contactor |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 230V | 5 |
| HP @ 1 Phase - 240V | 5 hp |
| Height | 3.54 in |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| Width | 3.54 in |
| HP @ 3 Phase - 575V | 20 hp |
| HP @ 3 Phase - 240V | 10 hp |
| Depth | 5.79 in |
| HP @ 3 Phase - 480V | 15 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NC, 2NO |
| Hz | 50/60 |
| Frame / Series / Class / Code | Frame C |
| Standards | UL Listed |
| Auxiliary Contact Form | 2NO/2NC |
| NEMA Size | Not Applicable |
| Series | XT |
| IP Rating | IP20 |
| Electrical Connection | Screw Terminals |
| Product Width | 4-3/4 in |
| Hp Rating - Max | 2, 5/ 7.5, 10, 15, 20 hp (1/3PH @115,230/200,230,460,575 V) |
| Coil Voltage | 110/120V AC |
| Amperage Rating | 25 A |
| Product Height | 4-1/2 in |
| Contact Configuration | 2 NO, 2 NO |
| Frequency Rating | 50-60 Hz |
| Certifications | UL Listed |
| Product Name | Eaton XT IEC contactor |
| Product Length/Depth | 7-1/2 in |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Contactor Style | IEC |
| Mounting Hole Distance - Height | 2.95 in |
| NEMA Enclosure Material | Not Applicable |
| Maximum Operating Temperature | 122 deg F |
| Frame Size | C |
| Overall Width | 4-3/4 in |
| Minimum Operating Temperature | -13 deg F |
| Full Load Current - Resistive | 45 A |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Mounting Hole Distance - Width | 1.77 in |
| Frequency | 50/60 Hz |
| Reversing Capability | Reversing |
| Full Load Current - Inductive | 25 A |
| Embedded Surge Suppressor | Yes |
| Includes Auxiliary Contacts | Yes |
| NEMA Enclosure Rating | No Enclosure |
| Number of Auxillary Contacts | 4 |
| Mounting Hole Diameter | 0.16 in |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Horsepower @ Three Phase - 600V AC | 20 HP |
| Overall Height | 4-1/2 in |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Overall Depth | 7-1/2 in |
| Mounting Style | DIN Rail, Panel |
| Terminal Connection Type | Screw Terminals |
| Package Quantity | 1 |
