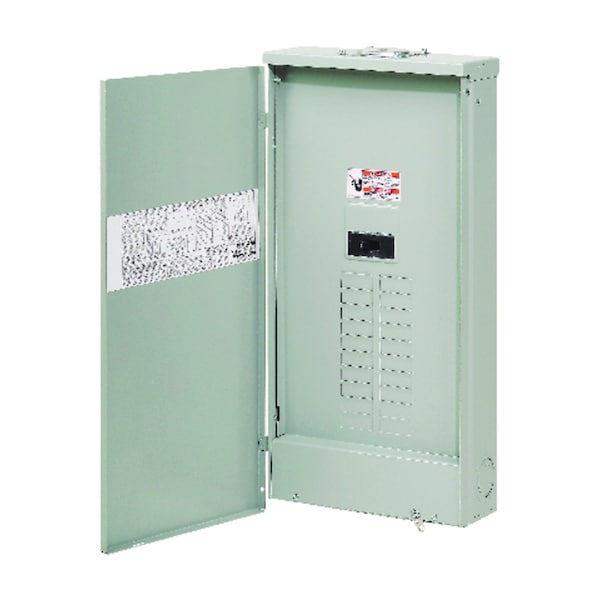

Load Center, BRP, 20 Spaces, 200A, 120/240V AC, Main Circuit Breaker, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Circuit Breaker |
| Number of Spaces | 20 |
| Amps | 200A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 25kA |
| Height | 21 in |
| Width | 14.31 in |
| Depth | 3.88 in |
| Series | BRP |
| Included Enclosure Cover | Cover Included |
| Enclosure Material | Metallic |
| Enclosure NEMA Rating | NEMA 3R |
| Bus Material | Aluminum |
| Standards | UL 50 |
| Weight | 35.13 lb |
| Number of wires | 3 |
| Special features | No feed-thru lugs |
| Used with | Type BR 1-inch breakers |
| Number Of Circuits | 40 |
| Wire size | #2/0 AWG-300 kcmil Cu/Al |
| Package Quantity | 1 |
