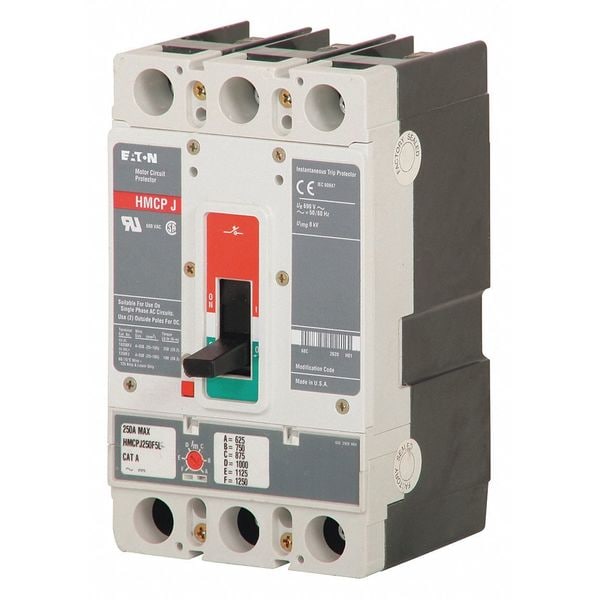

Molded Case Circuit Breaker, HMCP Series, 3A, 3 Pole, 600V AC, 65kA at 600V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | HMCP |
| Amps | 3A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Max. AIR Rating | 65kA at 600V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Line, Load Lug |
| Phase Connection | ABC |
| Frame Size | 250A, J |
| Width | 5.1 in |
| Depth | 7.6 in |
| Height | 4.8 in |
| DC Voltage Rating | 250V DC |
| Standards | CSA Certified, IEC Rated, UL Listed |
| Min. Wire Size | 14 AWG |
| Low Amp Trip Setting | 0.69 A |
| For Use With | Motor Starters Equipped with Electronic Overload Relays |
| Max. Wire Size | 1/0 AWG |
| High Amp Trip Setting | 2.5 A |
| Max. Operating Temp. | 158 deg F |
| Min. Operating Temp. | -4 deg F |
| Used With | Electric starters |
| Product Name | Eaton molded case circuit breaker accessory |
| Certifications | UL Listed;CSA Certified |
| Terminal Material | Non-aluminum |
| Magnetic Trip Range | 9 to 30 A |
| Mounting | Free Standing |
| Package Quantity | 1 |
