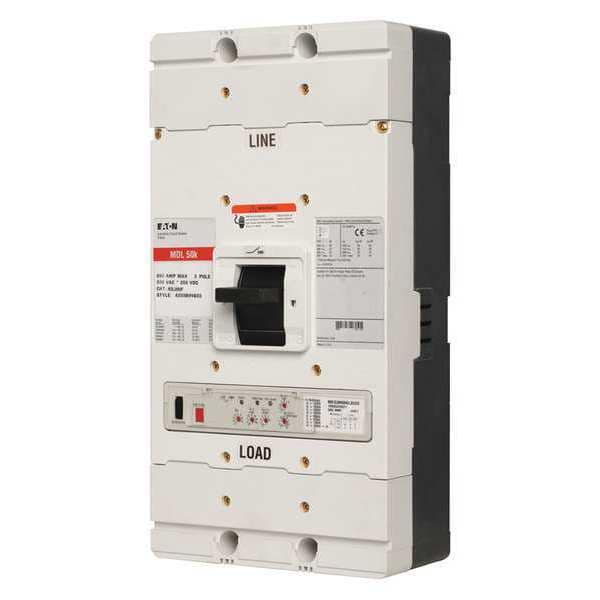

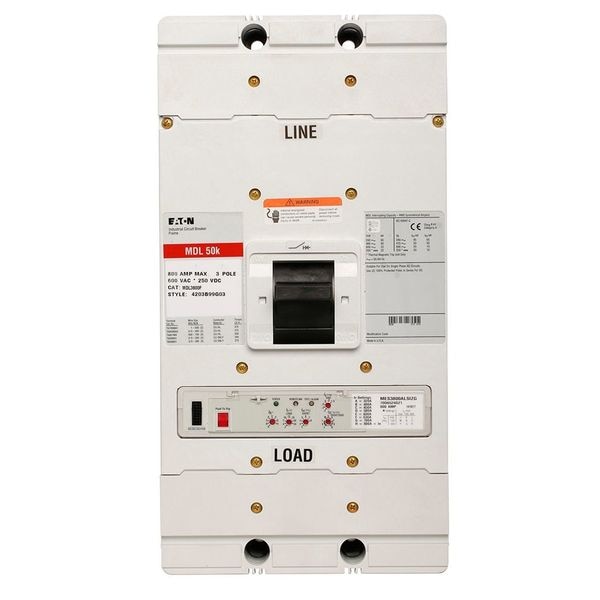

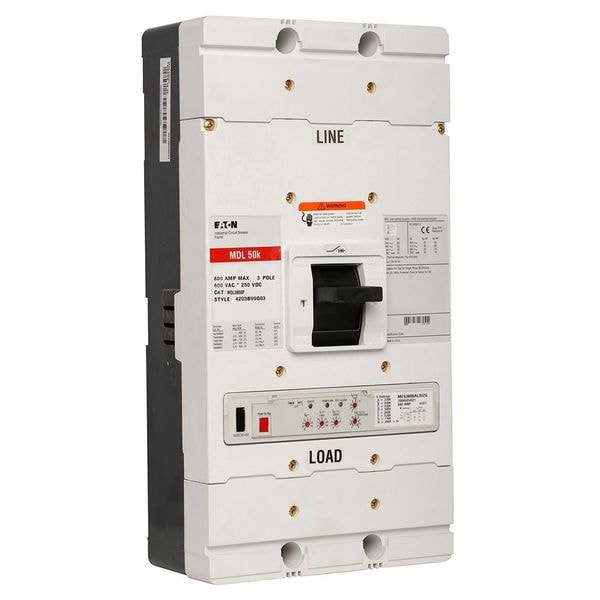

Molded Case Circuit Breaker, MDL Series, 800A, 3 Pole, 600V AC, 65kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | MDL |
| Amps | 800A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Max. AIR Rating | 65kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Line, Load Lug |
| Phase Connection | ABC |
| Frame Size | 800A, M |
| Width | 11 in |
| Depth | 18 in |
| Height | 8 in |
| DC Voltage Rating | 250V DC |
| Standards | CSA Certified, IEC Rated, UL Listed |
| Min. Wire Size | 400 MCM |
| For Use With | Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse |
| Max. Wire Size | 3 AWG |
| High Amp Trip Setting | 800 A |
| Low Amp Trip Setting | 300 A |
| Interrupt Rating | 50 kA at 480V AC |
| Frame Type | Complete Breaker |
| Min. Operating Temp. | -4 deg F |
| Max. Operating Temp. | 158 deg F |
| Product Name | Eaton Series C complete molded case circuit breaker |
| Certifications | UL Listed |
| Mounting | Free Standing |
| Package Quantity | 1 |
