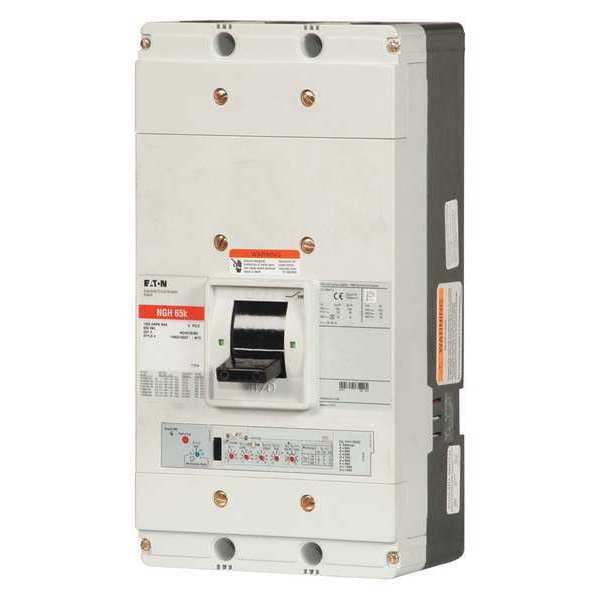

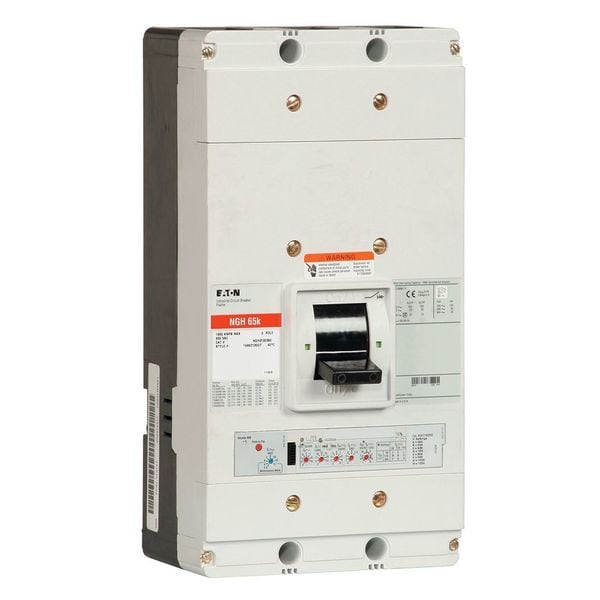

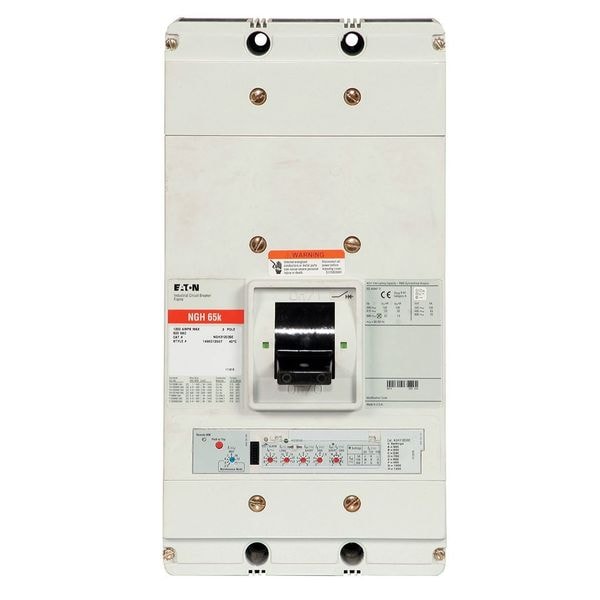

Molded Case Circuit Breaker, NG Series, 1,200A, 3 Pole, 600V AC, 65kA at 480V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | NG |
| Amps | 1,200A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | LSI Functionality |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Max. AIR Rating | 65kA at 480V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Adjustable |
| Terminal Connection | Line, Load Lug |
| Phase Connection | ABC |
| Frame Size | 1200A, N |
| Width | 9 in |
| Depth | 6 in |
| Height | 9 in |
| DC Voltage Rating | 250V DC |
| For Use With | Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse |
| Standards | CSA Certified, IEC Rated, UL Listed |
| High Amp Trip Setting | 1,200 A |
| Max. Wire Size | 500 MCM |
| Min. Wire Size | 4 AWG |
| Low Amp Trip Setting | 800 A |
| Interrupt Rating | 100 kA at 240V AC |
| Max. Operating Temp. | 158 deg F |
| Min. Operating Temp. | -4 deg F |
| Frequency Rating | 50 to 60 Hz |
| Product Name | Eaton Series G molded case circuit breaker |
| Certifications | UL Listed;CSA Certified |
| Compliances | HACR Rated |
| Rating | 80% rated |
| Mounting | Free Standing |
| Package Quantity | 1 |
