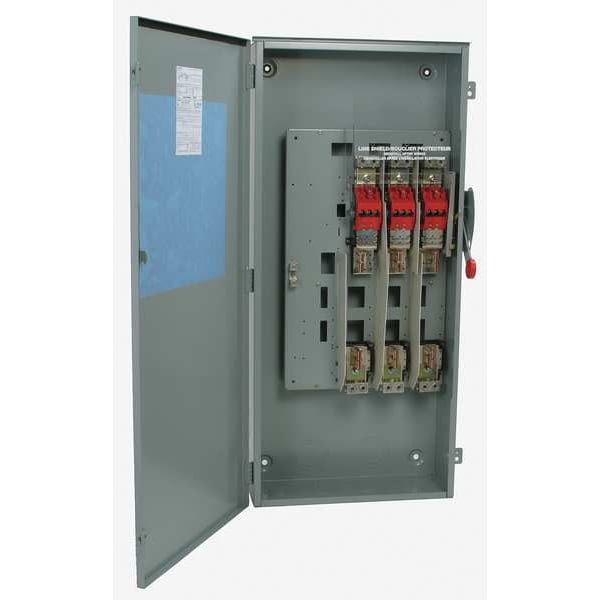

Interruptor de seguridad no fusible, resistente, 600V CA/250V CC, 3 polos + apagado, 100 A, NEMA 3R.
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC/250V DC |
| Phase | 3 |
| HP | 60 HP @ 480 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvanized Steel |
| Height | 22 in |
| Fusible / Nonfusible | Nonfusible |
| Width | 11.8 in |
| Depth | 10 in |
| Standards | NEMA KS-1, UL Listed, UL98 |
| Type | Single-throw |
| Enclosure Type | Enclosed |
| NEMA Enclosure Rating | 3R |
| Mounting Style | Surface Mount |
| Environment | Indoor, Outdoor |
| Horsepower @ 480V AC | 75 HP |
| For Fuse Class | Not Applicable |
| Housing Material | Steel |
| Horsepower @ 600V AC | 100 HP |
| Horsepower @ 240V AC | 40 HP |
| Current Rating | 100 A |
| Hp Rating - Max | 20 at 240 Vac TD 1 Ph, 40 at 480 Vac TD 1 Ph, 50 at 600 Vac TD 1 Ph, 40 at 240 Vac TD 3 Ph, 75 at 480 Vac TD 3 Ph, 100 at 600 Vac TD 3 Ph, 20 at 250 Vdc |
| Product Height | 21.68 in |
| Certifications | UL Listed |
| Product Length/Depth | 9.89 in |
| Enclosure | NEMA 3R |
| Amperage Rating | 100 A |
| Voltage Rating | 600 V |
| Nema Rating | NEMA 3R |
| Product Name | Eaton safety switch |
| Fuse Configuration | Non-fusible |
| Compliances | NEC 230.62 (C) Compliant Barrier |
| Product Width | 11.84 in |
| Package Quantity | 1 |
