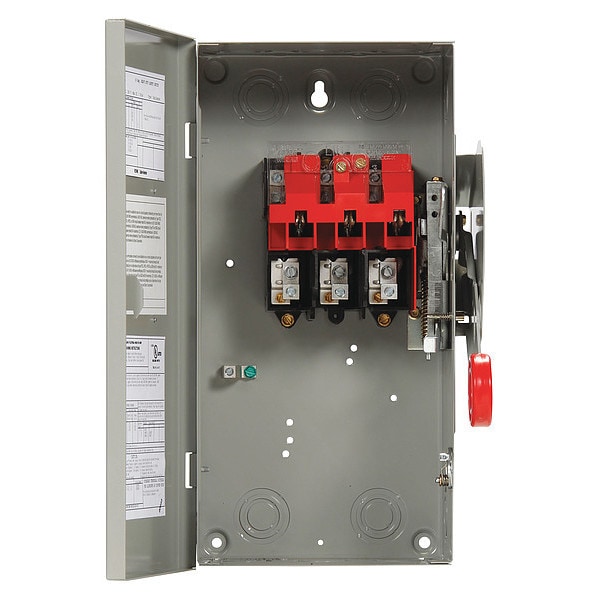

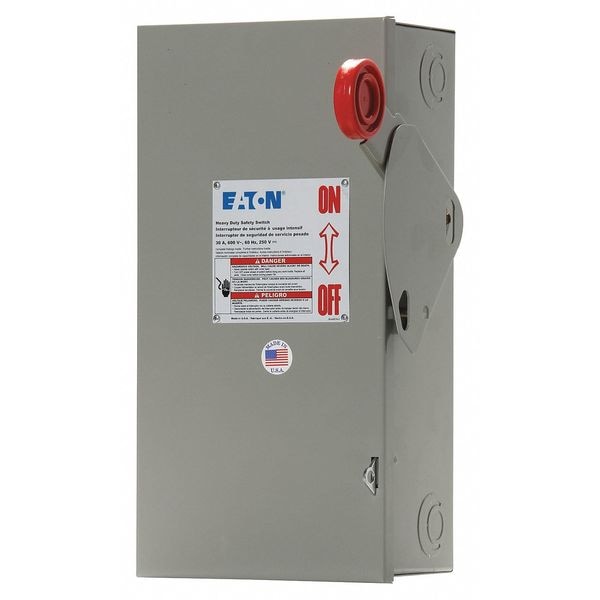

Interruptor de seguridad no fusible, servicio pesado, 600V CA/250V CC, 3 polos, 30 A, NEMA 1
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC/250V DC |
| Phase | 3 |
| HP | 15 HP @ 480 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Depth | 10 in |
| Width | 8.1 in |
| Height | 15.9 in |
| Standards | NEMA KS-1, UL Listed, UL98 |
| Fusible / Nonfusible | Nonfusible |
| Type | Single-throw |
| Enclosure Type | Enclosed |
| Horsepower @ 600V AC | 30 HP |
| Housing Material | Steel |
| Horsepower @ 240V AC | 10 HP |
| Current Rating | 30 A |
| Horsepower @ 480V AC | 20 HP |
| For Fuse Class | Not Applicable |
| Environment | Indoor |
| NEMA Enclosure Rating | 1 |
| Mounting Style | Surface Mount |
| Hp Rating - Max | 7.5 at 480 Vac TD 1 Ph, 10 at 600 Vac TD 1 Ph, 10 at 240 Vac TD 3 Ph, 20 at 480 Vac TD 3 Ph, 30 at 600 Vac TD 3 Ph, 5 at 250 Vdc |
| Product Height | 15.81 in |
| Voltage Rating | 600 V |
| Amperage Rating | 30 A |
| Product Name | Eaton safety switch |
| Certifications | UL Listed |
| Compliances | NEC 230.62 (C) Compliant Barrier |
| Enclosure | NEMA 1 |
| Product Length/Depth | 9.89 in |
| Product Width | 8.81 in |
| Fuse Configuration | Non-fusible |
| Nema Rating | NEMA 1 |
| Package Quantity | 1 |
