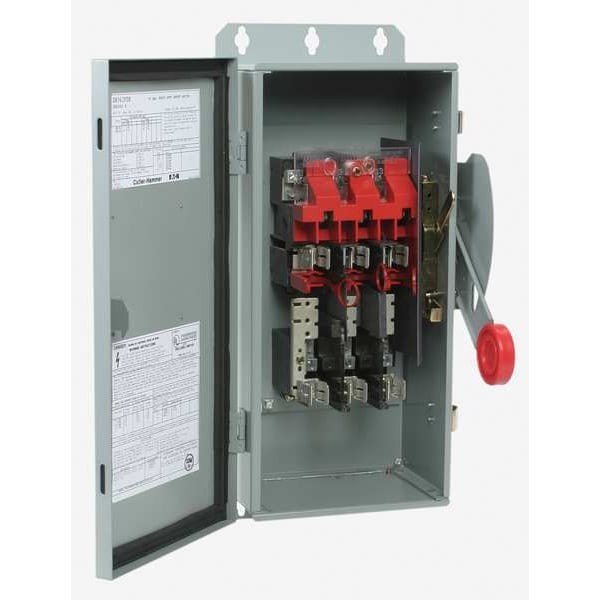

Interruptor de Seguridad No Fusible, Alta Resistencia, 600V CA/250V CD, 3PST, 60 A, NEMA 1.
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC/250V DC |
| Phase | 3 |
| HP | 30 HP @ 480 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 60 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Standards | NEMA KS-1, UL Listed, UL98 |
| Width | 8.1 in |
| Depth | 10 in |
| Fusible / Nonfusible | Nonfusible |
| Height | 15.9 in |
| Type | Single-throw |
| Current Rating | 60 A |
| NEMA Enclosure Rating | 1 |
| For Fuse Class | Not Applicable |
| Housing Material | Steel |
| Horsepower @ 600V AC | 60 HP |
| Horsepower @ 480V AC | 50 HP |
| Environment | Indoor |
| Horsepower @ 240V AC | 20 HP |
| Product Width | 8.13 in |
| Product Name | Eaton safety switch |
| Neutral | Not included |
| Compliances | NEC 230.62 (C) Compliant Barrier |
| Certifications | UL Listed |
| Nema Rating | NEMA 1 |
| Product Height | 15.88 in |
| Voltage Rating | 600 V |
| Enclosure | NEMA 1 |
| Amperage Rating | 60 A |
| Hp Rating - Max | 10 at 240 Vac TD 1 Ph, 20 at 480 Vac TD 1 Ph, 25 at 600 Vac TD 1 Ph, 20 at 240 Vac TD 3 Ph, 50 at 480 Vac TD 3 Ph, 60 at 600 Vac TD 3 Ph, 10 at 250 Vdc |
| Fuse Configuration | Non-fusible |
| Package Quantity | 1 |
