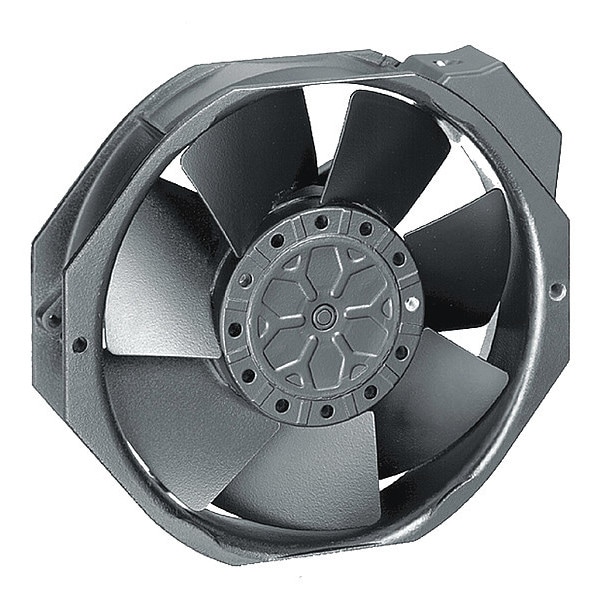

Axial Fan, 115V AC, 1 Phase, Aluminum, 5 15/16 in W.
| Blade Material | Steel |
|---|---|
| CFM @ 0.000-In. SP | 654 |
| Depth | 1-1/2 in |
| Height | 5-15/16 in |
| Housing Material | Aluminum |
| Phase | 1 |
| Width | 5-15/16 in |
| Voltage | 115V AC |
| Fan Width | 6-3/4 in |
| Fan Item | Axial Fan |
| Fan Height | 5-15/16 in |
| IP Rating | 22 |
| Fan Depth | 1-1/2 in |
| Item | Axial Fan |
| Max. Ambient Temp. | 131 deg F |
| Fan Width | 6-3/4 in |
| Fan Dia. | 5-9/16 in |
| Motor Type | DC |
| Mounting | Rack |
| Fan Voltage | 115VAC |
| Motor Insulation | Class B |
| Standards | CE, EN 60335-1 |
| Mounting Eye O.C. - Fans | 6-3/8 in |
| Fan dBA | 57 |
| Amps | 0.25 |
| Electrical Connection - Fans | Terminals |
| Bearings | Ball |
| Mounting Position | Vertical or Horizontal |
| Thermal Protection | Top Internally Connected |
| Requires | 3 MFD Capacitor |
| Fan Shape | Round |
| Housing Finish | Black Painted |
| Hz | 50/60 Hz |
| Fan Watts | 27 |
| Fan RPM | 3,350 |
| Environmental Applications | Equipment Cooling |
| Bearing Type | Ball |
| Diameter | 5-9/16 in |
| RPM | 3350 RPM |
| Country of Origin (subject to change) | Hungary |
| Package Quantity | 1 |
