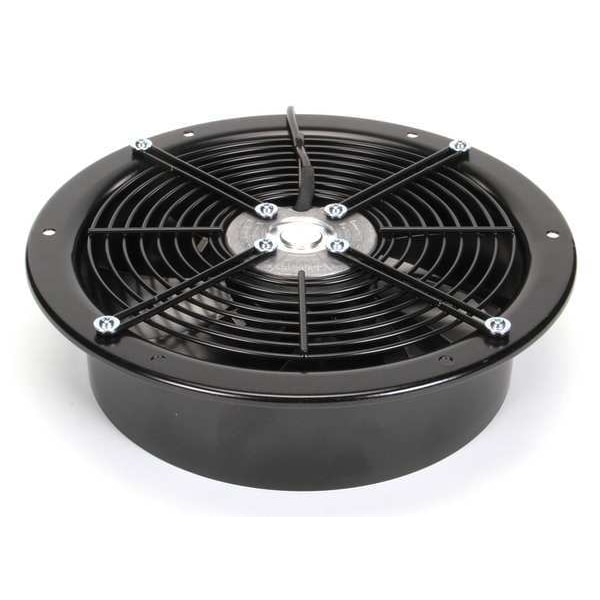

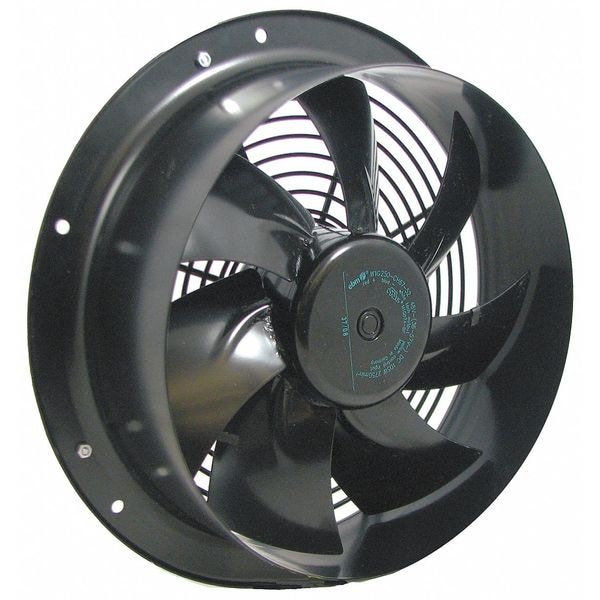

Axial Fan, Round, 24V DC, Cast Aluminum, 320mm W.
| Blade Material | Sheet Steel |
|---|---|
| CFM @ 0.000-In. SP | 642 cfm |
| Depth | 3-1/2 in |
| Housing Material | Cast Aluminum |
| Shape | Round |
| Watts | 105 |
| Width | 320 mm |
| Voltage | 24V DC |
| Fan Voltage | 24VDC |
| Fan Item | Axial Fan |
| Mounting | Flange |
| Electrical Connection - Fans | Leads |
| IP Rating | 42 |
| Standards | UL and C-UL Recognized and RoHS compliant |
| Fan RPM | 2,750 |
| Fan Depth | 3-1/2 in |
| Mounting Position | Vertical or Horizontal |
| Fan Shape | Round |
| dBA | 70 |
| Housing Finish | Black Powder Coated |
| Motor Insulation | Class B |
| Mounting Eye O.C. - Fans | 9-7/8 in |
| Amps | 5 |
| Fan Watts | 105 |
| Motor Type | Brushless DC |
| Fan dBA | 70 |
| Electrical Connections | 17-1/2" Leads |
| Fan Dia. | 11 in |
| Item | Axial Fan |
| Max. Ambient Temp. | 140 deg F |
| Mounting Eye O.C. | 9-7/8 in |
| Bearings | Ball |
| Environmental Applications | Equipment Cooling |
| Diameter | 12-5/8 in |
| Bearing Type | Ball |
| RPM | 2750 RPM |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
