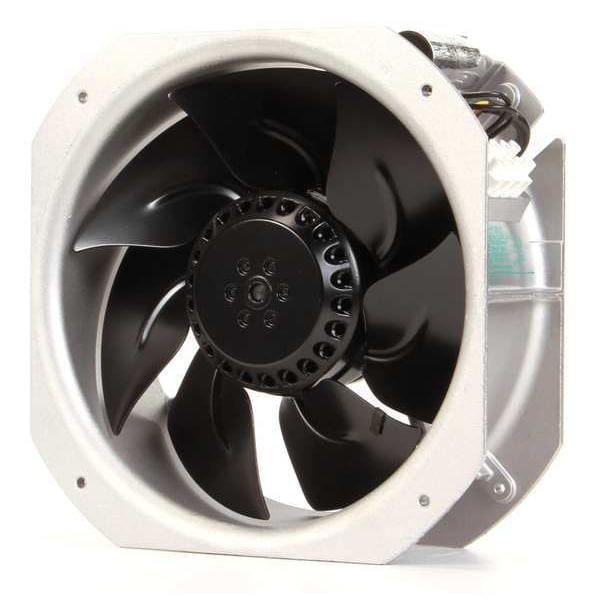

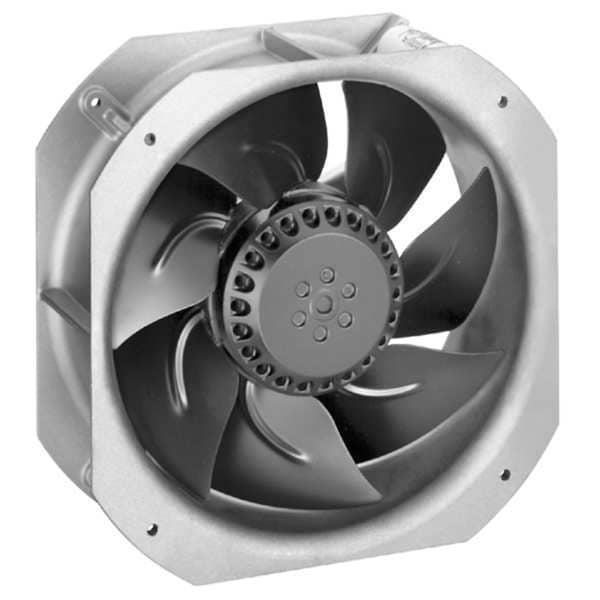

Axial Fan, Square, 230V AC, 1 Phase, Cast Aluminum, 8 7/8 in W.
| Blade Material | Sheet Steel |
|---|---|
| CFM @ 0.000-In. SP | 606 cfm |
| Depth | 3-1/8 in |
| Height | 8-7/8 in |
| Housing Material | Cast Aluminum |
| Phase | 1 |
| Shape | Square |
| Watts | 64/80 W |
| Width | 8-7/8 in |
| Voltage | 230V AC |
| Standards | UL and C-UL Recognized and RoHS compliant |
| Hz | 50/60 Hz |
| Fan Depth | 3-1/8 in |
| Electrical Connections | Terminal Strip |
| Motor Insulation | Class B |
| Bearings | Ball |
| Thermal Protection | Thermally Protected |
| Fan Width | 8-7/8 in |
| Fan dBA | 61 |
| Housing Finish | Black Painted |
| Mounting Eye O.C. - Fans | 9-7/16 in |
| Fan Voltage | 230VAC |
| Fan Height | 8-7/8 in |
| Fan Watts | 64/80 |
| Fan Shape | Square |
| Fan Dia. | 1-1/2 in |
| Motor Type | PSC |
| Fan Width | 8-7/8 in |
| IP Rating | 44 |
| Mounting | Flange |
| Electrical Connection - Fans | Terminals |
| Item | Axial Fan |
| Max. Ambient Temp. | 0.9396 deg F |
| Amps | 0.29/0.35 A |
| Mounting Position | Vertical or Horizontal |
| Mounting Eye O.C. | 9-7/16 in |
| dBA | 61 |
| Fan RPM | 2500/2800 |
| Fan Item | Axial Fan |
| Bearing Type | Ball |
| Environmental Applications | Equipment Cooling |
| RPM | 2500/2800 RPM |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
