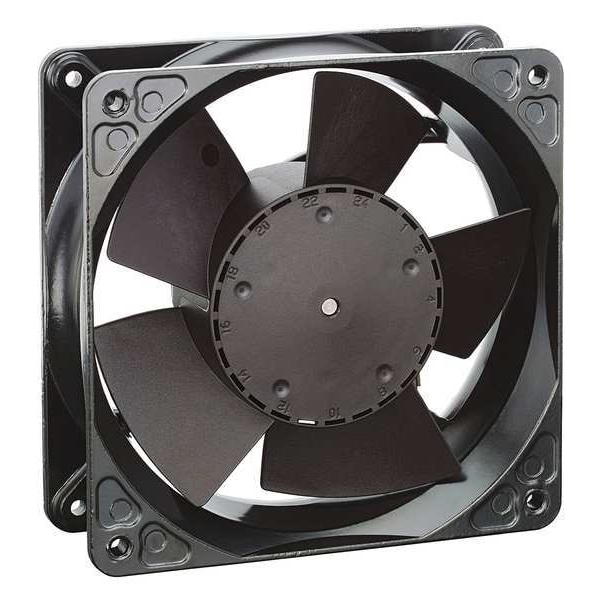

Axial Fan, Square, 24V DC, 1 Phase, Cast Aluminum, 4 11/16 in W.
| Blade Material | PA Plastic |
|---|---|
| CFM @ 0.000-In. SP | 99 cfm |
| Depth | 1-1/2 in |
| Height | 4-11/16 in |
| Housing Material | Cast Aluminum |
| Phase | 1 |
| Shape | Square |
| Watts | 11 |
| Width | 4-11/16 in |
| Voltage | 24V DC |
| Mounting | Flange |
| Housing Finish | Black Painted |
| Item | Axial Fan |
| Mounting Position | Vertical or Horizontal |
| Mounting Eye O.C. - Fans | 4-1/8 in |
| Fan Height | 4-11/16 in |
| Fan Item | Axial Fan |
| Fan Width | 4-11/16 in |
| Electrical Connections | Terminals |
| Requires | Hard Wiring |
| Max. Ambient Temp. | 131 deg F |
| Motor Insulation | Class E |
| Fan Depth | 1-1/2 in |
| Motor Type | DC |
| Fan RPM | 4,400 |
| Bearings | Ball |
| Thermal Protection | Impedance |
| Fan Dia. | 5 in |
| dBA | 56 |
| Standards | cCSAus, CE, IP68, UL, VDE |
| Fan Voltage | 24VDC |
| Fan dBA | 56 |
| Electrical Connection - Fans | Terminals |
| Mounting Eye O.C. | 4-1/8 in |
| Fan Shape | Square |
| Fan Watts | 11 |
| Fan Width | 4-11/16 in |
| IP Rating | IP68 |
| RPM | 4400 RPM |
| Bearing Type | Ball |
| Environmental Applications | Equipment Cooling |
| Country of Origin (subject to change) | Hungary |
| Package Quantity | 1 |
