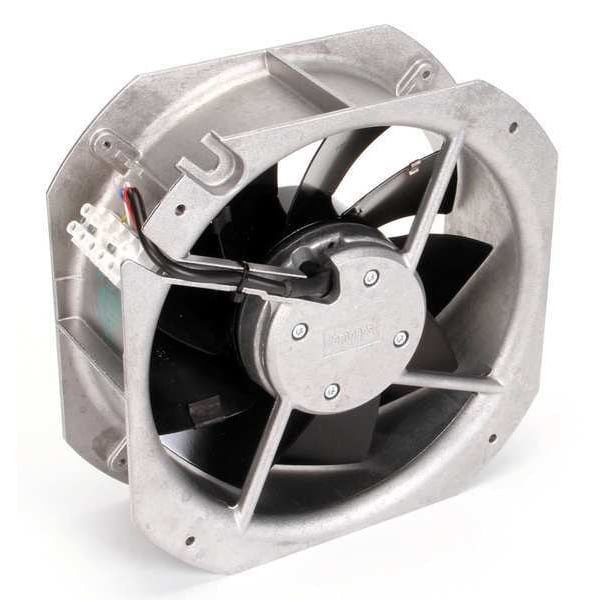

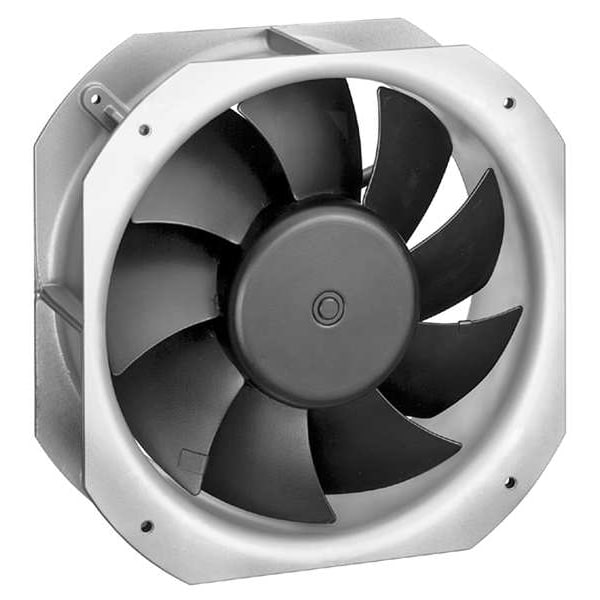

Axial Fan, Square, 24V DC, Cast Aluminum, 8 7/8 in W.
| Blade Material | Sheet Steel |
|---|---|
| CFM @ 0.000-In. SP | 642 cfm |
| Depth | 3-1/8 in |
| Height | 8-7/8 in |
| Housing Material | Cast Aluminum |
| Shape | Square |
| Watts | 55 |
| Width | 8-7/8 in |
| Voltage | 24V DC |
| Fan Width | 8-7/8 in |
| Electrical Connection - Fans | Terminals |
| Max. Ambient Temp. | 140 deg F |
| Amps | 2.6 |
| Fan Height | 8-7/8 in |
| Housing Finish | Black Powder Coated |
| Fan Dia. | 3-3/16 in |
| Fan Shape | Square |
| Fan Watts | 55 |
| Electrical Connections | Terminal Strip |
| dBA | 60 |
| Motor Insulation | Class B |
| IP Rating | 42 |
| Fan Width | 8-7/8 in |
| Mounting Eye O.C. - Fans | 9-7/16 in |
| Fan Depth | 3-1/8 in |
| Fan RPM | 2,950 |
| Item | Axial Fan |
| Fan Item | Axial Fan |
| Fan Voltage | 24VDC |
| Mounting Position | Vertical or Horizontal |
| Fan dBA | 60 |
| Motor Type | Brushless DC |
| Bearings | Ball |
| Mounting Eye O.C. | 9-7/16 in |
| Standards | UL and C-UL Recognized and RoHS compliant |
| Bearing Type | Ball |
| RPM | 2950 RPM |
| Environmental Applications | Equipment Cooling |
| Country of Origin (subject to change) | Hungary |
| Package Quantity | 1 |
