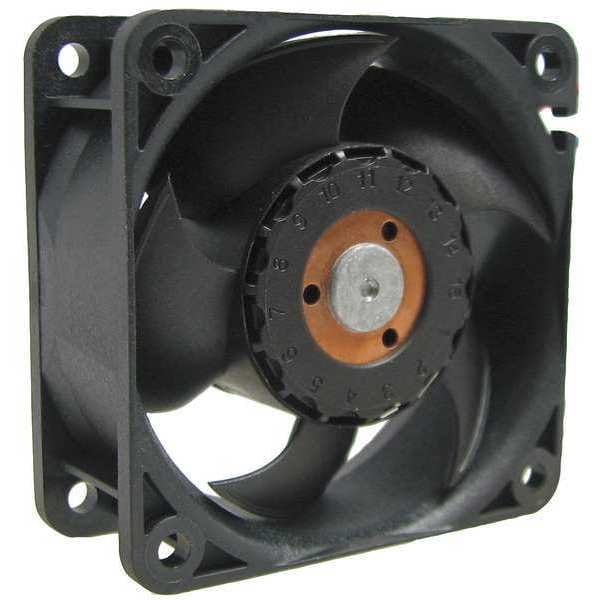

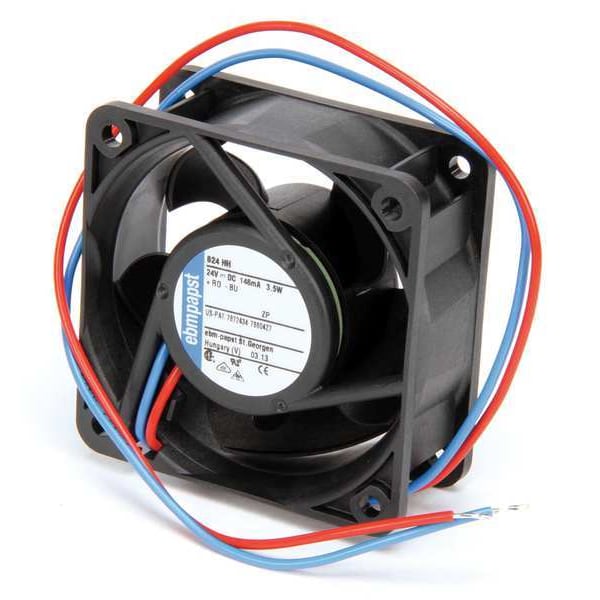

Axial Fan, Square, 24V DC, Fiberglass Reinforced Plastic, 2 5/16 in W.
| Blade Material | Fiberglass Reinforced Plastic PA |
|---|---|
| CFM @ 0.000-In. SP | 33 cfm |
| Depth | 1 in |
| Height | 2-5/16 in |
| Housing Material | Fiberglass Reinforced Plastic |
| Shape | Square |
| Watts | 3.6 |
| Width | 2-5/16 in |
| Voltage | 24V DC |
| Fan Shape | Square |
| Thermal Protection | Electronic |
| IP Rating | 20 |
| Fan Height | 2-21/64 in |
| Motor Insulation | Class E |
| Standards | UL and C-UL Recognized and RoHS compliant |
| Fan Watts | 3.6 |
| Max. Ambient Temp. | 158 deg F |
| Fan Width | 2-21/64 in |
| Fan Depth | 1 in |
| Mounting | Flange |
| Mounting Position | Vertical or Horizontal |
| Electrical Connections | 12" Leads |
| Fan Item | Axial Fan |
| Amps | 0.15 |
| Fan Dia. | 1 in |
| Bearings | Ball |
| Electrical Connection - Fans | Leads |
| dBA | 43 |
| Fan Voltage | 24VDC |
| Motor Type | Brushless DC |
| Housing Finish | Black |
| Fan RPM | 8,200 |
| Fan dBA | 43 |
| Mounting Eye O.C. - Fans | 2 in |
| Item | Axial Fan |
| Mounting Eye O.C. | 2 in |
| Fan Width | 2-21/64 in |
| Bearing Type | Ball |
| RPM | 8200 RPM |
| Environmental Applications | Equipment Cooling |
| Country of Origin (subject to change) | Hungary |
| Package Quantity | 1 |
