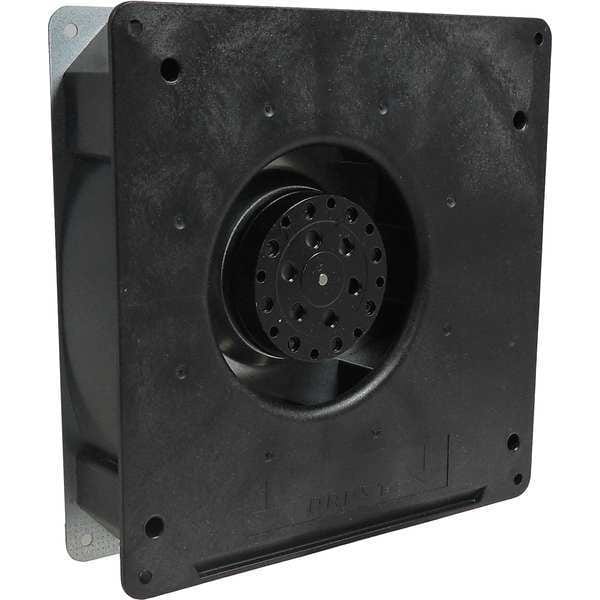

Compact Blower, Square, 115V AC, 1 Phase, Fiberglass Reinforced Plastic with Galvanized Steel Base
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Blade Material | Fiberglass Reinforced Plastic |
| CFM @ 0.000-In. SP | 55.3 cfm |
| Depth | 1-1/2 in |
| Height | 7 in |
| Housing Material | Fiberglass Reinforced Plastic with Galvanized Steel Base |
| Phase | 1 |
| Shape | Square |
| Watts | 19 |
| Width | 7 in |
| Voltage | 115V AC |
| Fan Watts | 19 |
| Bearings | Ball |
| Fan dBA | 60 |
| Fan Height | 7 in |
| Max. Ambient Temp. | 176 deg F |
| Fan Dia. | 1-9/16 in |
| Mounting Eye O.C. | 6-1/2 in |
| Housing Finish | Black Painted |
| Item | Compact Blower |
| Motor Type | Shaded pole |
| dBA | 60 |
| Fan Voltage | 115VAC |
| Mounting Eye O.C. - Fans | 6-1/2 in |
| Mounting | Flange |
| Fan Shape | Square |
| Mounting Position | Vertical or Horizontal |
| Fan RPM | 2,750 |
| Amps | 0.2 |
| Fan Item | Flatpack Axial Fan |
| Fan Width | 7 in |
| Electrical Connection - Fans | Lead Wires |
| Electrical Connections | 12.2" Leads AWG 22 |
| Thermal Protection | Impedance |
| Fan Width | 7 in |
| Fan Depth | 1-1/2 in |
| Motor Insulation | Class F |
| Hz | 60 Hz |
| Standards | UL |
| Lead Length | 12 in |
| Sound Level | 60 |
| Color | Black |
| Environmental Applications | Equipment Cooling |
| RPM | 2,750 RPM |
| Bearing Type | Ball |
| Type | Flatpack |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
