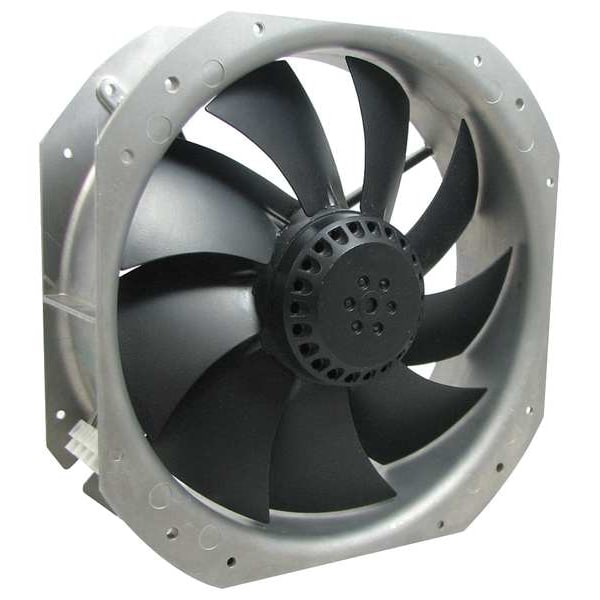

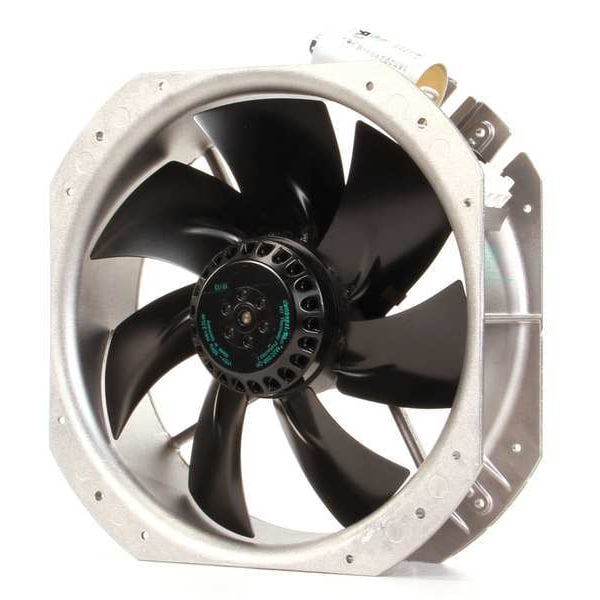

Standard Square Axial Fan, Square, 115V AC, 1 Phase, Cast Aluminum, 11 in W.
| Blade Material | Sheet Steel |
|---|---|
| CFM @ 0.000-In. SP | 1100 cfm |
| Depth | 3-1/8 in |
| Height | 11 in |
| Housing Material | Cast Aluminum |
| Phase | 1 |
| Shape | Square |
| Watts | 175 |
| Width | 11 in |
| Voltage | 115V AC |
| Housing Finish | Black Painted |
| Amps | 1.42 |
| Thermal Protection | Thermally Protected |
| IP Rating | 44 |
| Max. Ambient Temp. | 122 deg F |
| Hz | 60 Hz |
| Electrical Connections | Terminal Strip |
| Fan Voltage | 115VAC |
| Mounting Eye O.C. | 11-5/8 in |
| Fan Watts | 175 |
| Fan Depth | 3-1/8 in |
| Motor Insulation | Class B |
| Mounting Eye O.C. - Fans | 11-5/8 in |
| Bearings | Ball |
| Fan Shape | Square |
| Electrical Connection - Fans | Terminals |
| Fan Item | Axial Fan |
| Standards | UL and C-UL Recognized and RoHS compliant |
| Fan Dia. | 3-3/16 in |
| Mounting | Flange |
| Fan dBA | 73 |
| Motor Type | PSC |
| Fan RPM | 2,850 |
| Fan Height | 11 in |
| Fan Width | 11 in |
| Item | Standard Square Axial Fan |
| Mounting Position | Vertical or Horizontal |
| dBA | 73 |
| Fan Width | 11 in |
| Bearing Type | Ball |
| RPM | 2850 RPM |
| Environmental Applications | Equipment Cooling |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
