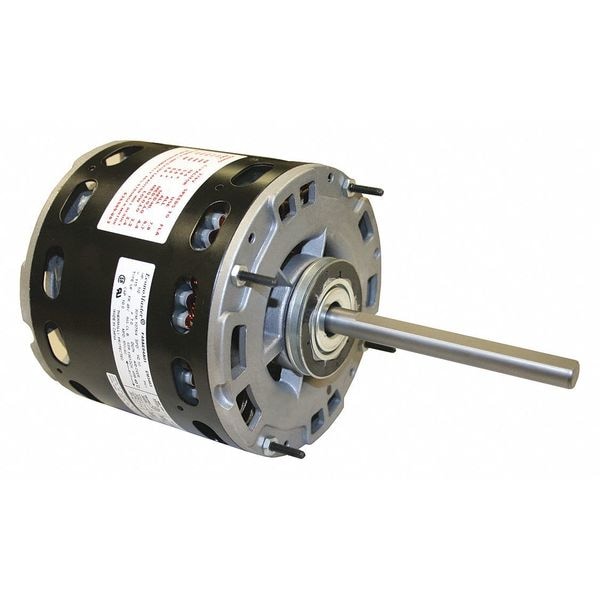

Furnace Blowr Motor, 1/4 HP, 1075 rpm
| Item | Direct Drive Fan/Blower Motor |
|---|---|
| Motor Design | Permanent Split Capacitor |
| HP | 1/4 |
| RPM Range | 1,001-1,100 |
| Nameplate RPM | 1,075 |
| Voltage | 208-230V AC |
| Frame | 48 Y |
| Motor Mounting Type | Extended Studs |
| Phase | Single |
| Motor Enclosure Design | Open Enclosed |
| Standards | CSA Certified, UL Listed |
| Usable @ 200V | Yes |
| Motor Shaft Rotation | CCW |
| Overall Length | 9 in |
| Stud Quantity | 4 |
| Ins. Class | B |
| Resilient Ring Dia. | 2-1/2 in |
| Motor Application | Direct Drive Fan/Blower |
| Shaft Dia. | 1/2 in |
| Motor Mounting Position | Horizontal |
| Weight | 10 lb |
| Motor Bearings | Ball |
| Motor Service Factor | 1 |
| Stud Size | 8 to 32 |
| Full Load Amps | 1.9/1.1/0.90 A |
| Motor Thermal Protection | Auto |
| Motor Shaft Design | Flat |
| Length Less Shaft | 5 in |
| Capacitor Required | Yes |
| Voltage Compatibility | 208V AC, 230V AC |
| Motor Frame Material | Steel |
| Body Dia. | 5-5/8 in |
| Ring to Ring Center | 4.55 in |
| Max. Ambient Temp. | 40 deg C |
| No. of Speeds | 3 |
| Mounting Stud Length | 16/25 in |
| Hz | 60 |
| Usable @ 208V | Yes |
| Lead Length | 25 in |
| Shaft Length | 4 in |
| Bearing Protection | Not Applicable |
| Motor Sub Application | Direct Drive Fan/Blower |
| Conduit Box Position | Not Applicable |
| Blade Material | Not Applicable |
| Blade Diameter | Not Applicable |
| Fan Mounting Type | Not Applicable |
| Output Watts | 0.19 kW |
| Blade Finish | Not Applicable |
| Includes Blade | Not Applicable |
| Inverter Rated | No |
| Country of Origin (subject to change) | India |
| Package Quantity | 1 |
