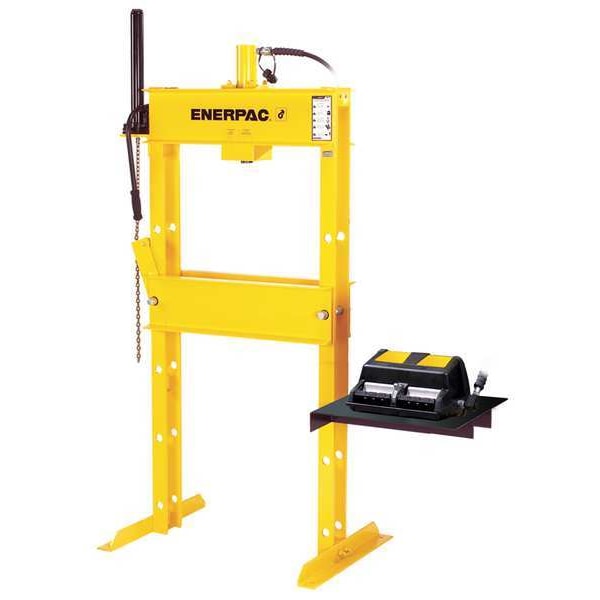

IPA1220, 10 Ton, H-Frame Hydraulic Press with RC1010 Single-Acting Cylinder and XA12 Air Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 10 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 10 in |
| Pump Type | Air |
| Base Length | 25 in |
| Base Width | 24-7/8 in |
| Overall Height | 52 in |
| Item | Hydraulic Press |
| Strokes to Extend Piston 1 In | 1.5 |
| Ram Travel | 29-1/2 in |
| Application | Pressing Bearings |
| Working Width | 18-1/2 in |
| Reservoir Capacity | 61 cu in |
| Cylinder | Mfr. No. RC-1010 |
| Pump | Mfr. No. XA-11 |
| Working Height | 40" |
| Total Height | 52 in |
| Bed Height | 40" |
| Cylinder Type | Single Acting |
| Includes | Gauge Adaptor, General Purpose Hydraulic Cylinder, Heavy Duty Rubber High Pressure Hydraulic Hose |
| Features | Heavy Duty Welded Construction |
| Total Width | 25 in |
| Pressure | 10 tons/10,000 psi |
| Max. Ram Press Speed | 13.4 in/sec |
| For Use With | Cylinder Mfr. No. RC1010 |
| Max. Ram Advance Speed | 2.2 in/sec |
| Adjustable Bed | Adjustable |
| Overall Width | 24-7/8 in |
| Max. Ram-to-Table Distance | 40 in |
| Overall Length | 29-3/4 in |
| Stroke | 1-1/2 in |
| Distance Between Uprights | 18-5/8 in |
| Operating Pressure | 10,000 psi |
| Overall Depth | 29-3/4 in |
| Voltage | Not Applicable |
| Phase | Not Applicable |
| Maximum Vertical Daylight | 40 in |
| Power Source Type | Air |
| Series | IP |
| Maximum Bed Width | 18.63 in |
| Press Bed Width | 18-5/8 in |
| Current | Not Applicable |
| Hydraulic Hose Length | 8 ft |
| Operation | Air |
| Cylinder Model Number | RC10010 |
| Maximum Ram Advance Speed | 2.2 in/sec |
| Ram-to-Table Distance - Minimum | 2-1/2 in |
| Press Bed Depth | 7-1/2 in |
| Horsepower | Not Applicable |
| Ram-to-Table Distance - Maximum | 40 in |
| Motor Speed - Maximum | Not Applicable |
| Capacity | 10 ton |
| Base Depth | 29-3/4 in |
| Maximum Ram Press Speed | 13.4 in/sec |
| Pump Model Number | XA12 |
| Package Quantity | 1 |
