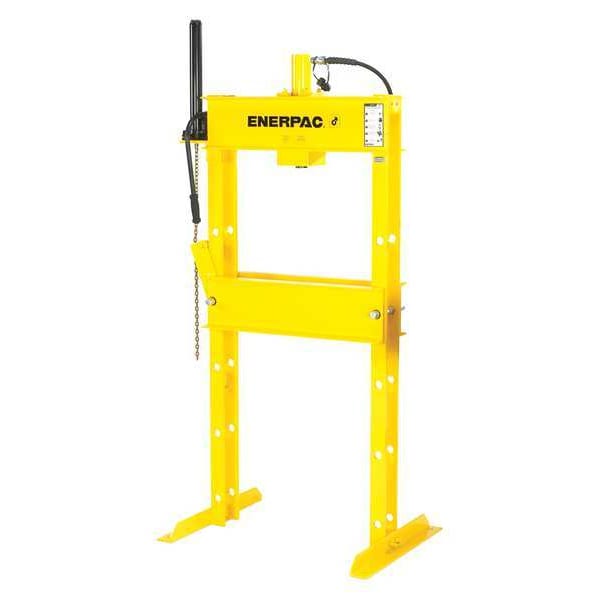

IPA1244, 10 Ton, H-Frame Hydraulic Press with RR1010 Double-Acting Cylinder and XA12V Air Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 10 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 10 in |
| Pump Type | Air |
| Base Length | 29-3/4 in |
| Base Width | 24-7/8 in |
| Overall Height | 52 in |
| Features | Welded Frame |
| Working Height | 58" |
| Includes | Gauge Adaptor, General Purpose Hydraulic Cylinder, Heavy Duty Rubber High Pressure Hydraulic Hose |
| Ram Travel | 19 in |
| Total Height | 52 in |
| Hose Length | 8 ft |
| Cylinder Type | Double Acting |
| Strokes to Extend Piston 1 In | 1.1 |
| Total Width | 30 in |
| Reservoir Capacity | 122 cu in |
| Item | Hydraulic Press |
| Application | Pressing Bearings |
| Working Width | 30 in |
| Cylinder | Mfr. No. RR-1010 |
| Pump | Mfr No. XA-11V, XA-12V |
| Bed Height | 40" |
| Overall Length | 29-3/4 in |
| Adjustable Bed | Adjustable |
| Overall Width | 24-7/8 in |
| Max. Ram Advance Speed | 2.2 in/sec |
| Max. Ram Press Speed | 13.4 in/sec |
| Pressure | 10 tons/10,000 psi |
| For Use With | Cylinder Mfr. No. RR1010 |
| Max. Ram-to-Table Distance | 40 in |
| Distance Between Uprights | 18-5/8 in |
| Stroke | 1.1 in |
| Voltage | Not Applicable |
| Operating Pressure | 10,000 psi |
| Overall Depth | 29-3/4 in |
| Phase | Not Applicable |
| Power Source Type | Air |
| Maximum Bed Width | 18.63 in |
| Maximum Vertical Daylight | 40 in |
| Series | IP |
| Pump Model Number | XA12V |
| Hydraulic Hose Length | 8 ft |
| Motor Speed - Maximum | Not Applicable |
| Press Bed Width | 18-5/8 in |
| Current | Not Applicable |
| Maximum Ram Advance Speed | 2.2 in/sec |
| Cylinder Model Number | RR10010 |
| Operation | Air |
| Capacity | 10 ton |
| Horsepower | Not Applicable |
| Ram-to-Table Distance - Maximum | 40 in |
| Maximum Ram Press Speed | 13.4 in/sec |
| Base Depth | 29-3/4 in |
| Ram-to-Table Distance - Minimum | 2-1/2 in |
| Package Quantity | 1 |
