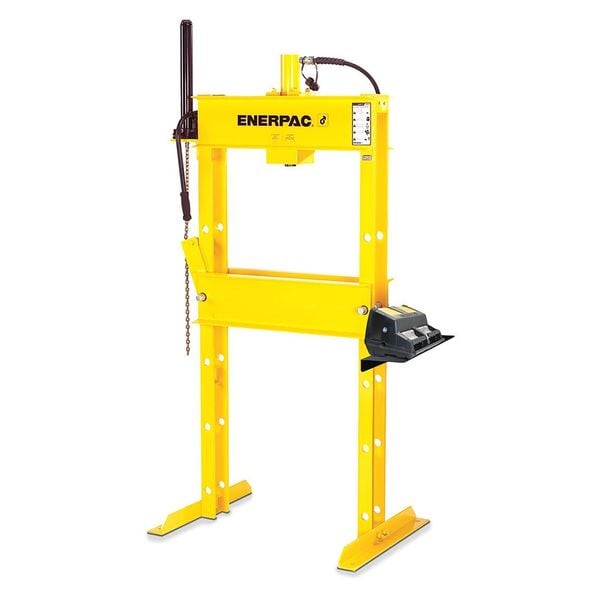

IPA2520, 25 Ton, H-Frame Hydraulic Press with RC2514 Single-Acting Cylinder and XA12 Air Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 25 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 14 in |
| Pump Type | Air |
| Base Length | 40-1/2 in |
| Base Width | 40-1/2 in |
| Overall Height | 89-1/4 in |
| Total Height | 76 in |
| Pump | Mfr. No. XA-12 |
| Working Width | 29 in |
| Reservoir Capacity | 122 cu in |
| Application | Pressing Bearings |
| Includes | Cylinder, Gauge, Hoses, Pump |
| Working Height | 7 to 54-1/2" |
| Item | Hydraulic Press |
| Features | For Intermittent Use;Heavy Duty Welded Construction |
| Total Width | 40-1/2 in |
| Strokes to Extend Piston 1 In | 2.5 |
| Cylinder | Mfr. No. RC-2514 |
| Ram Travel | 6 in |
| Cylinder Type | Single Acting |
| Bed Height | 54.5" |
| Overall Width | 40-1/2 in |
| Max. Ram Advance Speed | 5.2 in/sec |
| Max. Ram Press Speed | 30.9 in/sec |
| For Use With | Cylinder Mfr. No. RC2514 |
| Overall Length | 30 in |
| Width Between Table Channels | 4 in |
| Distance Between Uprights | 29 in |
| Max. Ram-to-Table Distance | 54-1/2 in |
| Stroke | 2-1/2 in |
| Adjustable Bed | Adjustable |
| Pressure | 10,000 psi, 25 tons |
| Voltage | Not Applicable |
| Phase | Not Applicable |
| Overall Depth | 30 in |
| Operating Pressure | 10,000 psi |
| Series | IP |
| Maximum Vertical Daylight | 54-1/2 in |
| Power Source Type | Air |
| Maximum Bed Width | 29 in |
| Cylinder Model Number | RC2514 |
| Current | Not Applicable |
| Pump Model Number | XA12 |
| Capacity | 25 ton |
| Maximum Ram Press Speed | 30.9 in/sec |
| Maximum Ram Advance Speed | 5.2 in/sec |
| Motor Speed - Maximum | Not Applicable |
| Operation | Air |
| Press Bed Depth | 4 in |
| Ram-to-Table Distance - Maximum | 54-1/2 in |
| Press Bed Width | 29 in |
| Ram-to-Table Distance - Minimum | 7 in |
| Base Depth | 30 in |
| Horsepower | Not Applicable |
| Package Quantity | 1 |
