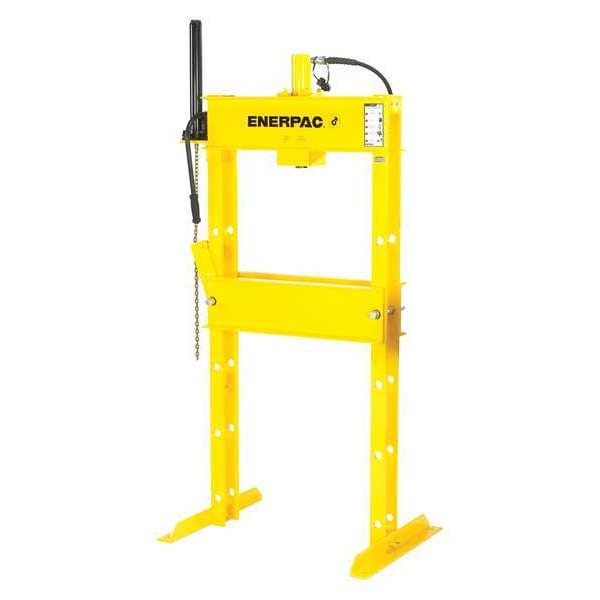

IPA5021, 50 Ton, H-Frame Hydraulic Press with RC506 Single-Acting Cylinder and PAM1022 Air Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 50 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 6 in |
| Pump Type | Air |
| Base Length | 42 in |
| Base Width | 42-3/4 in |
| Overall Height | 84-3/4 in |
| Cylinder | Mfr. No. RC-506 |
| Ram Travel | 16 in |
| Features | Welded Frame |
| Strokes to Extend Piston 1 In | 1 |
| Total Width | 42 in |
| Working Height | 82" |
| Pump | Mfr. No. PAM-1022 |
| Cylinder Type | Single Acting |
| Application | Pressing Bearings |
| Working Width | 42 in |
| Hose Length | 6 ft |
| Bed Height | 48.56" |
| Item | Hydraulic Press |
| Includes | Gauge Adaptor, General Purpose Hydraulic Cylinder, Heavy Duty Rubber High Pressure Hydraulic Hose |
| Reservoir Capacity | 2 gal |
| Total Height | 82 in |
| Stroke | 1 in |
| For Use With | Cylinder Mfr. No. RC506 |
| Overall Width | 42-3/4 in |
| Max. Ram Press Speed | 74 in/sec |
| Pressure | 10,000 psi, 50 tons |
| Adjustable Bed | Adjustable |
| Overall Length | 36 in |
| Max. Ram-to-Table Distance | 48.56 in |
| Max. Ram Advance Speed | 1 in/sec |
| Distance Between Uprights | 28-3/4 in |
| Width Between Table Channels | 5 in |
| Voltage | Not Applicable |
| Operating Pressure | 10,000 psi |
| Phase | Not Applicable |
| Overall Depth | 36 in |
| Series | IP |
| Maximum Bed Width | 28-3/4 in |
| Power Source Type | Air |
| Maximum Vertical Daylight | 48.56 in |
| Pump Model Number | PAM1022 |
| Operation | Air |
| Horsepower | Not Applicable |
| Cylinder Model Number | RC506 |
| Press Bed Width | 28-3/4 in |
| Ram-to-Table Distance - Minimum | 7 in |
| Press Bed Depth | 5 in |
| Maximum Ram Press Speed | 74 in/sec |
| Current | Not Applicable |
| Hydraulic Hose Length | 6 ft |
| Ram-to-Table Distance - Maximum | 48-1/2 in |
| Base Depth | 36 in |
| Capacity | 50 ton |
| Maximum Ram Advance Speed | 1 in/sec |
| Motor Speed - Maximum | Not Applicable |
| Package Quantity | 1 |
