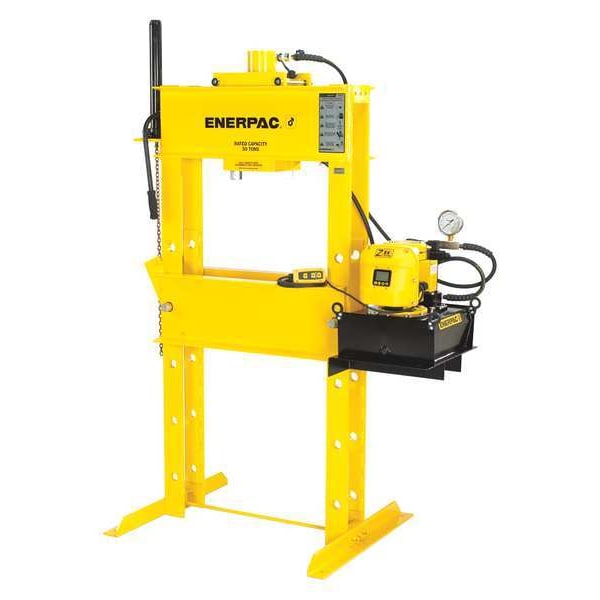

IPE10010, 100 Ton, H-Frame Hydraulic Press, RC10010 Single-Acting Cylinder, ZE4320SBN Electric Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 100 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 10 in |
| Pump Type | Electric |
| Base Length | 52 in |
| Base Width | 51 in |
| Overall Height | 84-3/4 in |
| Total Height | 80 in |
| Working Height | 80" |
| Cylinder Type | Single Acting |
| Ram Travel | 16 in |
| Bed Height | 42.5" |
| Total Width | 62-1/2 in |
| Reservoir Capacity | 5 gal |
| Application | Pressing Bearings |
| Strokes to Extend Piston 1 In | 1.9 |
| Hose Length | 6 ft |
| Working Width | 52 in |
| Pump | Mfr. No. ZE4320SB-N |
| Item | Hydraulic Press |
| Cylinder | Mfr. No. RC-10010 |
| Features | Welded Frame |
| Includes | Cylinder, Gauge, Hoses, Pump |
| Width Between Table Channels | 6-3/4 in |
| Max. Ram Press Speed | 20.6 in/sec |
| Max. Ram Advance Speed | 1.9 in/sec |
| Overall Length | 36 in |
| Pressure | 10,000 psi, 100 tons |
| Stroke | 1.9 in |
| Overall Width | 51 in |
| For Use With | Cylinder Mfr. No. RC10010 |
| Max. Ram-to-Table Distance | 42-1/2 in |
| Distance Between Uprights | 35 in |
| Adjustable Bed | Adjustable |
| Operating Pressure | 10,000 psi |
| Overall Depth | 36 in |
| Phase | Single |
| Voltage | 115 VAC |
| Maximum Vertical Daylight | 41 in |
| Series | IP |
| Maximum Bed Width | 35 in |
| Power Source Type | Electric |
| Operation | Electric |
| Press Bed Width | 35 in |
| Capacity | 100 ton |
| Pump Model Number | ZE4320SBN |
| Base Depth | 36 in |
| Cylinder Model Number | RC10010 |
| Ram-to-Table Distance - Minimum | 5-1/2 in |
| Maximum Ram Press Speed | 20.6 in/sec |
| Maximum Ram Advance Speed | 1.9 in/sec |
| Ram-to-Table Distance - Maximum | 41 in |
| Press Bed Depth | 17-1/4 in |
| Hydraulic Hose Length | 6 ft |
| Horsepower | 1.5 |
| Package Quantity | 1 |
