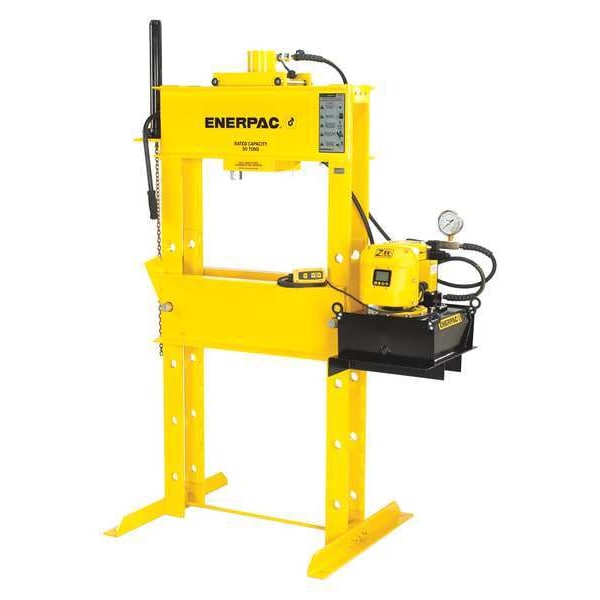

IPE15065, 150 Ton, H-Frame Hydraulic Press, RR15013 Double-Acting Cylinder, ZE5420SGN Electric Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 150 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 13 in |
| Pump Type | Electric |
| Base Length | 67.17 in |
| Base Width | 67-1/8 in |
| Overall Height | 93-1/8 in |
| Cylinder | Mfr. No. RR-15013 |
| Features | Welded Frame |
| Working Width | 67-8/47" |
| Working Height | 90" |
| Total Height | 90 in |
| Reservoir Capacity | 5 gal |
| Total Width | 70-1/2 in |
| Pump | Mfr. No. ZE5420SG-N |
| Hose Length | 6 ft |
| Ram Travel | 19 in |
| Includes | Cylinder, Gauge, Hoses, Pump |
| Application | Pressing Bearings |
| Item | Hydraulic Press |
| Bed Height | 48.5" |
| Strokes to Extend Piston 1 In | 1.5 |
| Cylinder Type | Double Acting |
| Stroke | 1-1/2 in |
| Max. Ram-to-Table Distance | 48-1/2 in |
| Max. Ram Press Speed | 15.4 in/sec |
| Overall Width | 67-1/8 in |
| Adjustable Bed | Adjustable |
| Width Between Table Channels | 9-1/8 in |
| Distance Between Uprights | 48 in |
| Max. Ram Advance Speed | 2.2 in/sec |
| Pressure | 10,000 psi, 150 tons |
| Overall Length | 29-3/4 in |
| For Use With | Cylinder Mfr. No. RR15013 |
| Operating Pressure | 10,000 psi |
| Overall Depth | 44 in |
| Maximum Vertical Daylight | 48-1/2 in |
| Maximum Bed Width | 48 in |
| Power Source Type | Electric |
| Series | IP |
| Maximum Ram Press Speed | 15.4 in/sec |
| Hydraulic Hose Length | 6 ft |
| Capacity | 150 ton |
| Ram-to-Table Distance - Maximum | 48-1/2 in |
| Pump Model Number | ZE5420SGN |
| Press Bed Width | 48 in |
| Operation | Electric |
| Base Depth | 44 in |
| Cylinder Model Number | RR15013 |
| Press Bed Depth | 9-1/8 in |
| Maximum Ram Advance Speed | 2.2 in/sec |
| Ram-to-Table Distance - Minimum | 12-1/2 in |
| Package Quantity | 1 |
