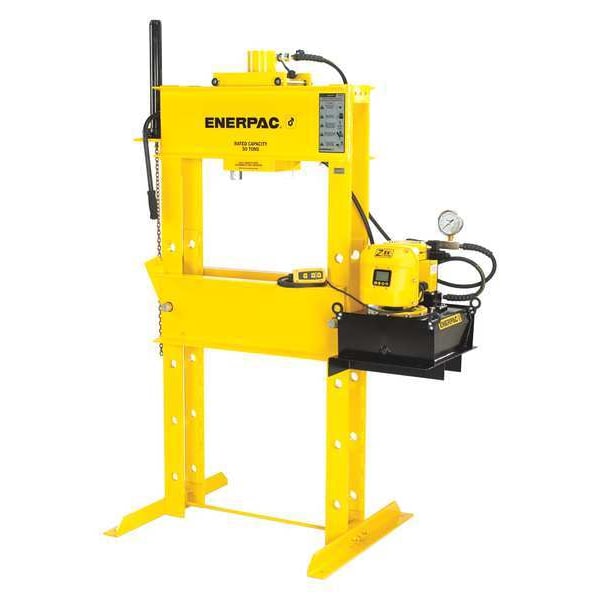

IPE2510, 25 Ton, H-Frame Hydraulic Press, RC2514 Single-Acting Cylinder and ZE3310SBN Electric Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 25 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 14 in |
| Pump Type | Electric |
| Base Length | 41 in |
| Base Width | 40-1/2 in |
| Overall Height | 89-1/4 in |
| Item | Hydraulic Press |
| Pump | Mfr. No. ZE3310SB-N |
| Cylinder Type | Single Acting |
| Reservoir Capacity | 2.5 gal |
| Total Width | 41 in |
| Application | Pressing Bearings |
| Features | Welded Frame |
| Includes | Cylinder, Gauge, Hoses, Pump |
| Working Width | 41 in |
| Cylinder | Mfr. No. RC-2514 |
| Working Height | 81" |
| Bed Height | 54.5" |
| Total Height | 81 in |
| Hose Length | 6 ft |
| Strokes to Extend Piston 1 In | 0.7 |
| Ram Travel | 10 in |
| Overall Length | 30 in |
| Width Between Table Channels | 4 in |
| Stroke | 0.7 in |
| Max. Ram-to-Table Distance | 54-1/2 in |
| Pressure | 10,000 psi, 25 tons |
| Overall Width | 40-1/2 in |
| Distance Between Uprights | 29 in |
| Max. Ram Press Speed | 7.7 in/sec |
| Max. Ram Advance Speed | 0.7 in/sec |
| For Use With | Cylinder Mfr. No. RC2514 |
| Adjustable Bed | Adjustable |
| Phase | Single |
| Overall Depth | 30 in |
| Operating Pressure | 10,000 psi |
| Voltage | 115 VAC |
| Power Source Type | Electric |
| Maximum Bed Width | 29 in |
| Maximum Vertical Daylight | 54-1/2 in |
| Series | IP |
| Hydraulic Hose Length | 6 ft |
| Cylinder Model Number | RC2514 |
| Maximum Ram Press Speed | 7.7 in/sec |
| Base Depth | 30 in |
| Ram-to-Table Distance - Minimum | 7 in |
| Press Bed Depth | 10-3/4 in |
| Press Bed Width | 29 in |
| Horsepower | 1 |
| Pump Model Number | ZE3310SBN |
| Operation | Electric |
| Ram-to-Table Distance - Maximum | 54-1/2 in |
| Maximum Ram Advance Speed | 0.7 in/sec |
| Capacity | 25 ton |
| Package Quantity | 1 |
