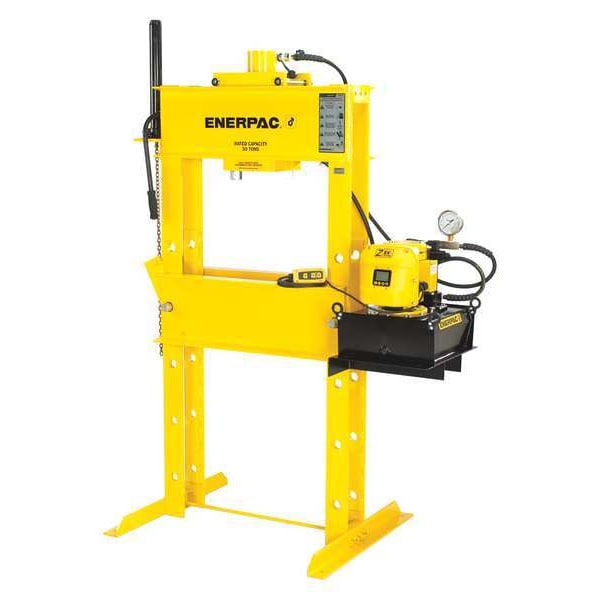

IPE3060, 30 Ton, H-Frame Hydraulic Press, RR3014 Double-Acting Cylinder and ZE3410SBN Electric Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 30 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 14 in |
| Pump Type | Electric |
| Base Length | 41 in |
| Base Width | 40-1/2 in |
| Overall Height | 89-1/4 in |
| Strokes to Extend Piston 1 In | 0.9 |
| Total Width | 41 in |
| Hose Length | 6 ft |
| Application | Pressing Bearings |
| Reservoir Capacity | 2.5 gal |
| Includes | Cylinder, Gauge, Hoses, Pump |
| Features | Welded Frame |
| Cylinder | Mfr. No. RR-3014 |
| Cylinder Type | Double Acting |
| Ram Travel | 10 in |
| Total Height | 81 in |
| Working Width | 41 in |
| Working Height | 81" |
| Item | Hydraulic Press |
| Pump | Mfr. No. ZE3410SB-N |
| Bed Height | 54.5" |
| Max. Ram Press Speed | 9.8 in/sec |
| Overall Length | 30 in |
| Stroke | 0.9 in |
| Max. Ram Advance Speed | 0.9 in/sec |
| For Use With | Cylinder Mfr. No. RR3014 |
| Pressure | 10,000 psi, 30 tons |
| Max. Ram-to-Table Distance | 54-1/2 in |
| Distance Between Uprights | 29 in |
| Width Between Table Channels | 4 in |
| Adjustable Bed | Adjustable |
| Overall Width | 40-1/2 in |
| Overall Depth | 30 in |
| Operating Pressure | 10,000 psi |
| Power Source Type | Electric |
| Maximum Bed Width | 29 in |
| Maximum Vertical Daylight | 54-1/2 in |
| Series | IP |
| Ram-to-Table Distance - Maximum | 54-1/2 in |
| Pump Model Number | ZE3410SBN |
| Hydraulic Hose Length | 6 ft |
| Press Bed Depth | 4 in |
| Maximum Ram Press Speed | 9.8 in/sec |
| Ram-to-Table Distance - Minimum | 7 in |
| Cylinder Model Number | RR3014 |
| Maximum Ram Advance Speed | 0.9 in/sec |
| Operation | Electric |
| Capacity | 30 ton |
| Press Bed Width | 29 in |
| Base Depth | 30 in |
| Package Quantity | 1 |
