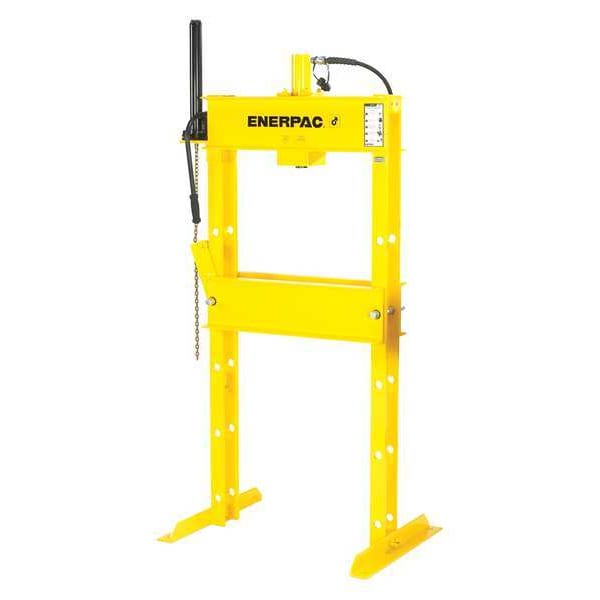

IPE5005, 50 Ton, H-Frame Hydraulic Press, RC506 Single-Acting Cylinder and PUJ1200B Electric Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 50 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 6 in |
| Pump Type | Electric |
| Base Length | 44 in |
| Base Width | 42-3/4 in |
| Overall Height | 84-3/4 in |
| Total Height | 82 in |
| Item | Hydraulic Press |
| Strokes to Extend Piston 1 In | 4 |
| Includes | Cylinder, Gauge, Hoses, Pump |
| Total Width | 44 in |
| Bed Height | 48.56" |
| Pump | Mfr. No. PUJ-1200B |
| Application | Pressing Bearings |
| Features | Welded Frame |
| Ram Travel | 10 in |
| Working Height | 82" |
| Cylinder Type | Single Acting |
| Reservoir Capacity | 0.5 gal |
| Cylinder | Mfr. No. RC-506 |
| Working Width | 44 in |
| Hose Length | 6 ft |
| Max. Ram-to-Table Distance | 48.56 in |
| Stroke | 4 in |
| Overall Length | 36 in |
| Adjustable Bed | Adjustable |
| For Use With | Cylinder Mfr. No. RC506 |
| Max. Ram Advance Speed | 2.9 in/sec |
| Max. Ram Press Speed | 28.9 in/sec |
| Pressure | 10,000 psi, 50 tons |
| Distance Between Uprights | 28-3/4 in |
| Overall Width | 42-3/4 in |
| Width Between Table Channels | 5 in |
| Phase | Single |
| Operating Pressure | 10,000 psi |
| Overall Depth | 36 in |
| Voltage | 115 VAC |
| Series | IP |
| Maximum Vertical Daylight | 48.56 in |
| Power Source Type | Electric |
| Maximum Bed Width | 28-3/4 in |
| Press Bed Width | 28-3/4 in |
| Horsepower | 0.5 |
| Hydraulic Hose Length | 6 ft |
| Capacity | 50 ton |
| Ram-to-Table Distance - Maximum | 48-1/2 in |
| Maximum Ram Press Speed | 28.9 in/sec |
| Maximum Ram Advance Speed | 2.9 in/sec |
| Operation | Electric |
| Base Depth | 36 in |
| Press Bed Depth | 14-3/8 in |
| Pump Model Number | PUJ1200B |
| Cylinder Model Number | RC506 |
| Ram-to-Table Distance - Minimum | 7 in |
| Package Quantity | 1 |
