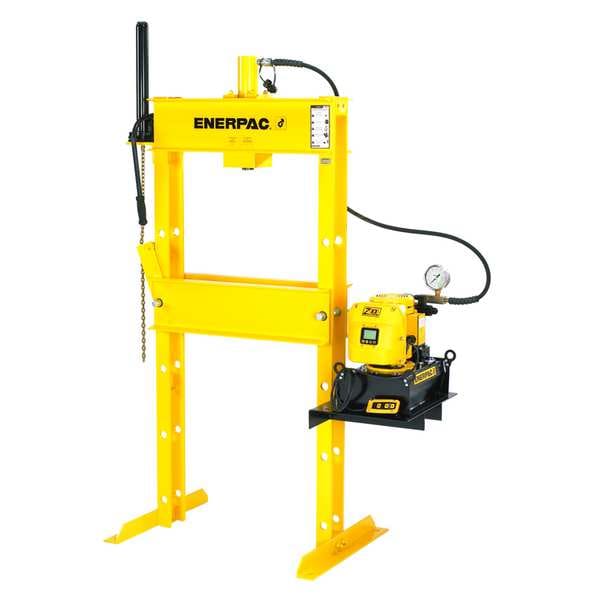

IPE5060, 50 Ton, H-Frame Hydraulic Press, RR5013 Double-Acting Cylinder and ZE4420SBN Electric Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 50 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 13 in |
| Pump Type | Electric |
| Base Length | 42-3/4 in |
| Base Width | 42-3/4 in |
| Overall Height | 84-3/4 in |
| Pump | Mfr No. ZE4420SB-N, N, ZE4420SG |
| Total Height | 76 in |
| Ram Travel | 6 in |
| Features | For Intermittent Use;Heavy Duty Welded Construction |
| Cylinder Type | Double Acting |
| Cylinder | Mfr. No. RR-5013 |
| Working Height | 7 to 48-1/2" |
| Item | Hydraulic Press |
| Reservoir Capacity | 5 gal |
| Bed Height | 48.5" |
| Working Width | 28-3/4 in |
| Application | Pressing Bearings |
| Strokes to Extend Piston 1 In | 1.1 |
| Includes | Cylinder, Gauge, Hoses, Pump |
| Total Width | 42-3/4 in |
| Adjustable Bed | Adjustable |
| Max. Ram Press Speed | 11 in/sec |
| Width Between Table Channels | 5 in |
| For Use With | Cylinder Mfr. No. RR5013 |
| Distance Between Uprights | 28-3/4 in |
| Max. Ram-to-Table Distance | 48.56 in |
| Pressure | 10,000 psi, 50 tons |
| Stroke | 1.1 in |
| Overall Length | 36 in |
| Max. Ram Advance Speed | 1 in/sec |
| Overall Width | 42-3/4 in |
| Operating Pressure | 10,000 psi |
| Overall Depth | 36 in |
| Maximum Vertical Daylight | 48.56 in |
| Power Source Type | Electric |
| Maximum Bed Width | 28-3/4 in |
| Series | IP |
| Maximum Ram Advance Speed | 1 in/sec |
| Capacity | 50 ton |
| Base Depth | 36 in |
| Pump Model Number | ZE4420SBN |
| Press Bed Depth | 5 in |
| Operation | Electric |
| Press Bed Width | 28-3/4 in |
| Ram-to-Table Distance - Maximum | 48-1/2 in |
| Maximum Ram Press Speed | 11 in/sec |
| Ram-to-Table Distance - Minimum | 7 in |
| Cylinder Model Number | RR5013 |
| Package Quantity | 1 |
