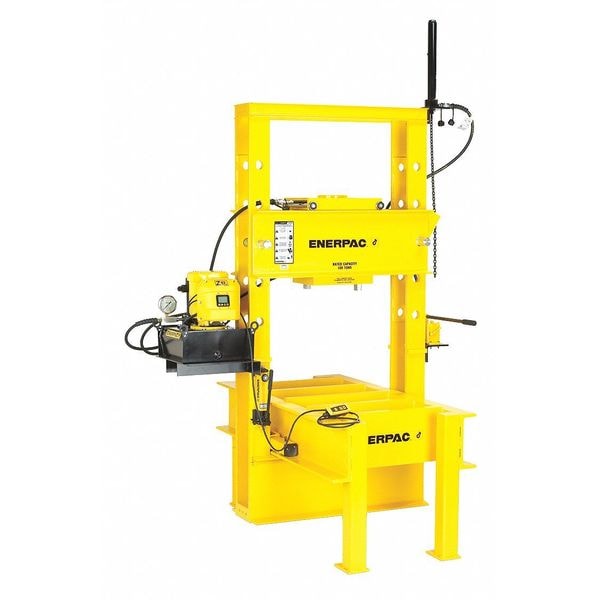

IPR5075, 50 Ton, Roll Frame Hydraulic Press, RR5013 Double-Acting Cylinder, ZE4420SBN Electric Pump
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Frame Capacity | 50 ton |
| Frame Type | Roll Frame |
| Cylinder Stroke | 13-1/8 in |
| Pump Type | Electric |
| Base Length | 55-59/64 in |
| Base Width | 55-7/8 in |
| Overall Height | 113 in |
| Pump | Mfr No. ZE4420SB-N |
| Features | Welded Frame |
| Cylinder Type | Double Acting |
| Item | Hydraulic Press |
| Total Height | 112.96 in |
| Total Width | 55-23/25" |
| Cylinder | Mfr. No. RR-5013 |
| Strokes to Extend Piston 1 In | 1 |
| Working Width | 55-23/25" |
| Includes | Cylinder, Gauge, Hoses, Pump |
| Ram Travel | 16 in |
| Working Height | 113" |
| Bed Height | 30" |
| Reservoir Capacity | 5 gal |
| Application | Pressing Bearings |
| Hose Length | 10 ft |
| Adjustable Bed | Adjustable |
| Stroke | 1 in |
| Width Between Table Channels | 5 in |
| Max. Ram Press Speed | 11.1 in/min |
| Overall Length | 64 in |
| For Use With | Cylinder Mfr. No. RR5013 |
| Distance Between Uprights | 28-3/4 in |
| Max. Ram Advance Speed | 1 in/min |
| Pressure | 10,000 psi, 50 tons |
| Max. Ram-to-Table Distance | 37.12 in |
| Overall Width | 55-7/8 in |
| Operating Pressure | 10,000 psi |
| Overall Depth | 64 in |
| Series | IPR |
| Maximum Vertical Daylight | 37.12 in |
| Maximum Bed Width | 28-3/4 in |
| Cylinder Model Number | RR5013 |
| Press Bed Depth | 5 in |
| Pump Model Number | ZE4420SBN |
| Press Bed Width | 28-3/4 in |
| Maximum Ram Advance Speed | 1 in/min |
| Maximum Ram Press Speed | 11.1 in/min |
| Ram-to-Table Distance - Minimum | 6 in |
| Ram-to-Table Distance - Maximum | 37-1/8 in |
| Hydraulic Hose Length | 10 ft |
| Operation | Electric |
| Base Depth | 64 in |
| Capacity | 50 ton |
| Package Quantity | 1 |
