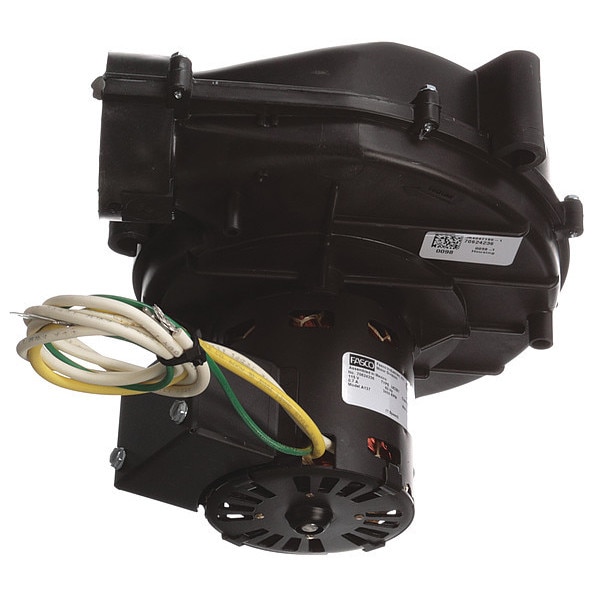

Draft Inducer Blower, 115, Plastic, 6 13/32 in W, 9 7/64 in H, 2.0/2.15" Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 2.0/2.15" |
|---|---|
| Item | Draft Inducer Blower |
| Type | Replacement |
| Voltage | 115 V |
| Depth (In.) | 7-45/64 |
| Construction Material | Plastic |
| Amps | 0.7 |
| Height (In.) | 9-7/64 |
| Vent Pipe Dia. (In.) | 3.3 |
| For Use With Mfr. Model Number | 024-25057-000, 7062-2442, 7062-3484 |
| Fits Brand | York |
| Replaces | Alltemp (Rotom) FB-RFB137, Fasco 70622442, 70623342, 70623484, 70623769, 70624536, York 024-25007-000, 024-25007-700, 024-25057-000, 024-25057-700 |
| Agency Compliance | CSA Motor Only, UL |
| Width (In.) | 6-13/32 |
| Application | Furnaces |
| Number of Speeds | 1 |
| RPM | 3,450 |
| Bearings | Sleeve |
| Enclosure | Open |
| Class | B |
| Overload Protection | Thermal |
| CFM @ 0.000-In. SP | 77 |
| CFM @ 0.700-In. SP | 65 |
| CFM @ 1.000-In. SP | 57 |
| CFM @ 1.40-In. SP | 53 |
| CFM @ 0.500-In. SP | 68 |
| Motor Type | Permanent Split Capacitor |
| For Use With | 024-25057-000, 7062-2442, 7062-3484, York |
| Outlet Height | Not Applicable |
| Maximum Inlet Air Temperature | 40 deg C |
| Current | 0.7 A |
| Housing Material | Plastic |
| Maximum Fan Speed | 3,400 rpm |
| Blower Type | Induced Draft Blower |
| Outlet Diameter | 2-1/8 in |
| Overall Width | 6-3/8 in |
| Outlet Width | Not Applicable |
| Frequency | 60 Hz |
| Inlet Diameter | 2 in |
| Wheel Diameter | 4-5/8 in |
| For Appliance Type | Furnaces |
| Phase | 1 |
| Includes Motor | Yes |
| Replacement For Manufacturer Model Number | 024-25007-000, 024-25007-700, 024-25057-000, 024-25057-700, 70622442, 70623342, 70623484, 70623769, 7062453, FB-RFB137 |
| Motor Insulation Class | B |
| Compatible with Brand | York |
| Electrical Connection | Wire Leads |
| OEM Replacement | Yes |
| Overall Height | 9 in |
| Standards | CSA Certified |
| Outlet Shape | Round |
| Wheel Material | Polypropylene |
| Maximum Motor Speed | 3,450 rpm |
| Overall Depth | 7-5/8 in |
| Maximum Static Pressure | Not Applicable |
| Nameplate Voltage | 115V AC |
| Wheel Type | Backward-Curved |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
