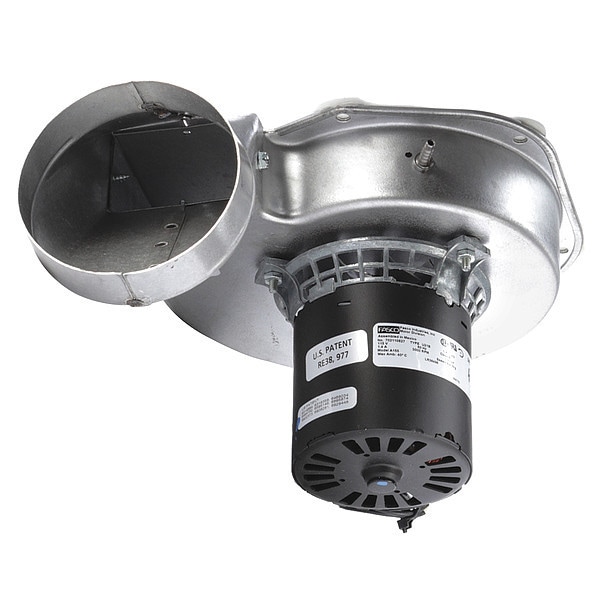

Draft Inducer Blower, 115, Steel, 6 5/32 in W, 8 1/2 in H, 4.9/3.85" Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 4.9/3.85" |
|---|---|
| Item | Draft Inducer Blower |
| Type | Replacement |
| Voltage | 115 V |
| Depth (In.) | 10-13/16 |
| Construction Material | Steel |
| Amps | 1.4 |
| Height (In.) | 8-1/2 |
| Vent Pipe Dia. (In.) | 3.3 |
| For Use With Mfr. Model Number | 7021-10046 |
| Fits Brand | Armstrong |
| Replaces | Alltemp (Rotom) FB-RFB425, Armstrong 40425-003, 40425-002, Fasco 702110046, 702110325, 702111062 |
| Agency Compliance | CSA Motor Only, UL |
| Width (In.) | 6-5/32 |
| Application | Furnaces |
| Number of Speeds | 1 |
| RPM | 3,000 |
| Bearings | Ball |
| Enclosure | Open |
| Class | B |
| Overload Protection | Thermal |
| CFM @ 1.40-In. SP | 55 |
| CFM @ 0.500-In. SP | 87 |
| CFM @ 1.000-In. SP | 74 |
| CFM @ 0.700-In. SP | 85 |
| CFM @ 0.000-In. SP | 97 |
| Motor Type | Shaded Pole |
| Maximum Inlet Air Temperature | 40 deg C |
| Blower Type | Induced Draft Blower |
| Replacement For Manufacturer Model Number | 40425-002, 40425-003, 702110046, 702110325, 702111062, FB-RFB425 |
| Maximum Motor Speed | 3,000 rpm |
| Current | 1.4 A |
| Standards | UL Listed, CSA Certified |
| Compatible with Brand | Armstrong |
| Inlet Diameter | 4-7/8 in |
| Includes Motor | Yes |
| For Appliance Type | Furnaces |
| Phase | 1 |
| Airflow @ 0.000 in SP | 87 cfm |
| Outlet Diameter | 3-3/4 in |
| Overall Height | 8-1/2 in |
| Motor Insulation Class | B |
| Frequency | 60 Hz |
| Wheel Diameter | 4-5/8 in |
| Overall Width | 6-1/8 in |
| Outlet Height | Not Applicable |
| Maximum Fan Speed | 3,400 rpm |
| OEM Replacement | Yes |
| Outlet Shape | Round |
| Electrical Connection | Wire Leads |
| Maximum Static Pressure | 2.125 in wc |
| Housing Material | Steel |
| Wheel Material | Steel |
| Wheel Type | Forward-Curved |
| Outlet Width | Not Applicable |
| Overall Depth | 10-3/4 in |
| For Use With | 7021-10046, Armstrong |
| Nameplate Voltage | 115V AC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
