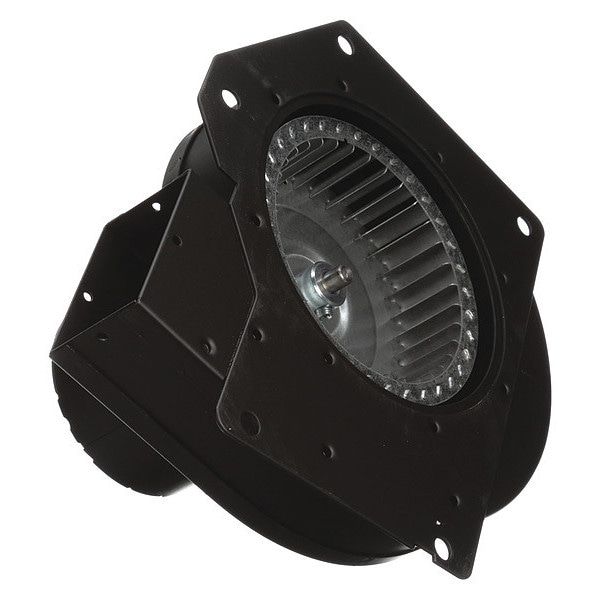

Induced Draft Furnace Blower, 115, Steel, 8 5/8 in W, 7 1/2 in H
| Item | Induced Draft Furnace Blower |
|---|---|
| Type | Replacement |
| Voltage | 115 V |
| Depth (In.) | 5-7/8 |
| HP | 1/55 hp |
| Construction Material | Steel |
| Amps | 0.65 |
| Remarks | Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions |
| Height (In.) | 7-1/2 |
| For Use With Mfr. Model Number | 610172, 7021-5043, 7021-7102 |
| Fits Brand | Heil Quaker |
| Replaces | Heil Quaker 610672..Fasco 70215043, 70217102 |
| Agency Compliance | CSA, UL |
| Width (In.) | 8-5/8 |
| Application | Furnaces |
| Watts | 67 |
| CFM @ 1.000-In. SP | 57 |
| CFM @ 0.700-In. SP | 62 |
| CFM @ 1.40-In. SP | 25 |
| CFM @ 0.500-In. SP | 63 |
| Outlet Diameter | Not Applicable |
| For Fuel Type | Natural Gas |
| OEM Replacement | Yes |
| Maximum Inlet Air Temperature | 40 deg C |
| Phase | 1 |
| Overall Width | 8-5/8 in |
| Current | 0.65 A |
| Compatible with Brand | Heil Quaker |
| Outlet Height | 2-5/8 in |
| For Appliance Type | Gas Furnaces |
| Replacement For Manufacturer Model Number | 610672, 7021-5043, 70217102 |
| Includes Motor | Yes |
| Overall Height | 7-1/2 in |
| Housing Material | Steel |
| Outlet Width | 1-5/8 in |
| Power Consumption | 67 W |
| Maximum Motor Horsepower | 1/55 hp |
| Maximum Motor Speed | 3,150 rpm |
| Motor Insulation Class | B |
| Outlet Shape | Rectangular |
| Frequency | 50/60 Hz |
| Electrical Connection | Wire Leads |
| For Use With | 610172, 7021-5043, 7021-7102, Heil Quaker |
| Blower Type | Induced Draft Blower |
| Standards | UL Listed, CSA Certified |
| Maximum Fan Speed | 3,400 rpm |
| Wheel Diameter | 4-1/2 in |
| Nameplate Voltage | 115V AC |
| Motor Type | Shaded Pole |
| Inlet Diameter | 4-5/8 in |
| Wheel Type | Forward-Curved |
| Wheel Material | Steel |
| Overall Depth | 5-7/8 in |
| Maximum Static Pressure | 1 in wc |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
