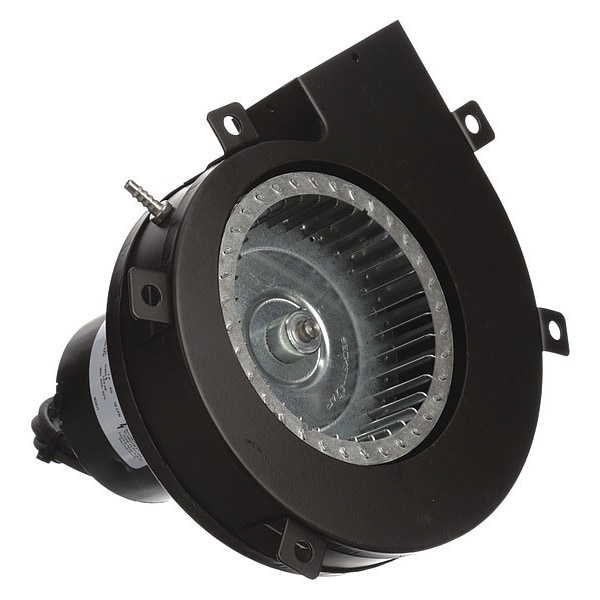

Induced Draft Furnace Blower, 115, Steel, 8 5/8 in W, 7 1/2 in H
| Item | Induced Draft Furnace Blower |
|---|---|
| Type | Replacement |
| Voltage | 115 V |
| Depth (In.) | 5-7/8 |
| HP | 1/50 hp |
| Construction Material | Steel |
| Amps | 1.1 |
| Remarks | Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions |
| Height (In.) | 7-1/2 |
| For Use With Mfr. Model Number | 7021-6804, B1859000, B1W24, WG94X167 |
| Fits Brand | Goodman, Trane |
| Replaces | Fasco 70216804, Goodman B1859000 |
| Agency Compliance | CSA, UL |
| Width (In.) | 8-5/8 |
| Application | Furnaces |
| Watts | 90 |
| CFM @ 1.40-In. SP | 21 |
| CFM @ 1.000-In. SP | 65 |
| CFM @ 0.700-In. SP | 70 |
| CFM @ 0.500-In. SP | 75 |
| CFM @ 0.000-In. SP | 89 |
| Electrical Connection | Wire Leads |
| Airflow @ 0.000 in SP | 90 cfm |
| Overall Depth | 5-7/8 in |
| Current | 1.1 A |
| Compatible with Brand | Goodman, Trane |
| Motor Insulation Class | B |
| Housing Material | Steel |
| Blower Type | Induced Draft Blower |
| Outlet Diameter | Not Applicable |
| Standards | UL Listed, CSA Certified |
| Power Consumption | 90 W |
| Overall Height | 7-1/2 in |
| Outlet Height | 2-5/8 in |
| Phase | 1 |
| Maximum Static Pressure | 1.5 in wc |
| Overall Width | 8-5/8 in |
| Outlet Shape | Rectangular |
| Nameplate Voltage | 115V AC |
| For Fuel Type | Natural Gas |
| Includes Motor | Yes |
| Motor Type | Shaded Pole |
| Inlet Diameter | 4-5/8 in |
| Outlet Width | 1-5/8 in |
| Maximum Fan Speed | 3,400 rpm |
| Replacement For Manufacturer Model Number | 7021-6804, B1859000 |
| Frequency | 50/60 Hz |
| OEM Replacement | Yes |
| Maximum Motor Horsepower | 1/50 hp |
| Wheel Material | Steel |
| Maximum Inlet Air Temperature | 40 deg C |
| Maximum Motor Speed | 3,000 rpm |
| For Appliance Type | Gas Furnaces |
| Wheel Type | Forward-Curved |
| Wheel Diameter | 4-1/2 in |
| For Use With | 7021-6804, B1859000, B1W24, WG94X167 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
