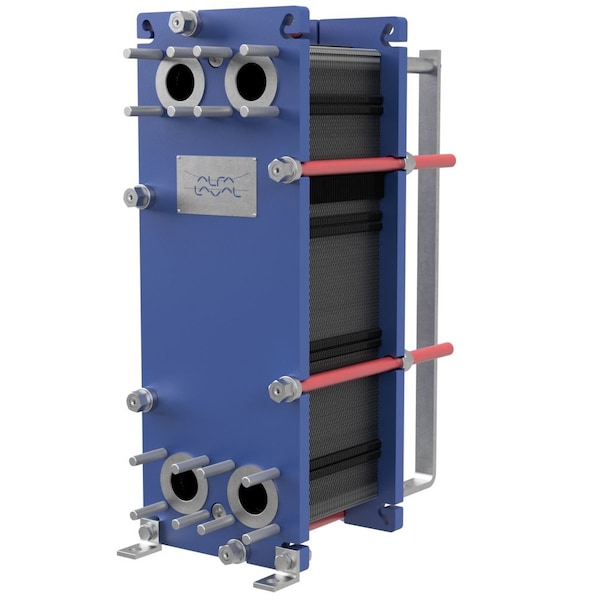

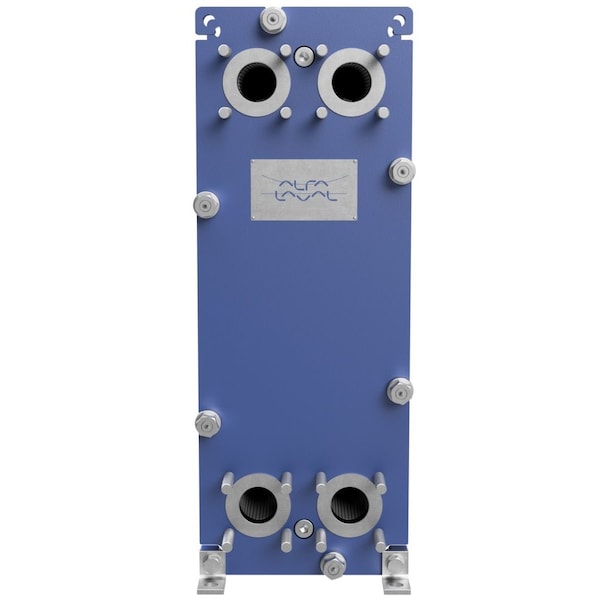

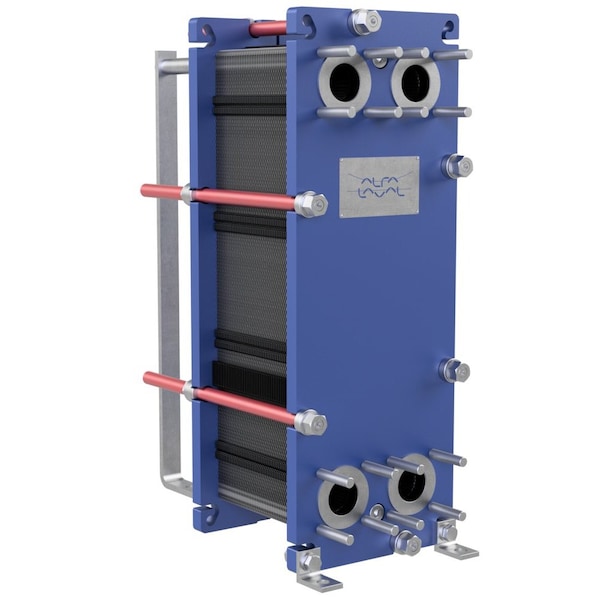

Gasketed Plate Heat Exchanger, 35 Plates, 700 kBtu
| Item | Heat Exchanger |
|---|---|
| Type | Gasketed Plate Heat Exchanger |
| Max. BtuH (Water to Water Application) | BtuH (Water to water heating application): 3200000 ; BtuH (water to water Cooling application): 2300000 |
| Max. BtuH (Oil to Water Application) | 34000 |
| Temp. (F) | -20 to 410 |
| Connection | Class 150 |
| Height (In.) | 34.6 |
| Agency Compliance | ASME Code Setion VIII Div. 1 |
| Plates | 35 |
| Weight (Lbs.) | 313 |
| Length (In.) | 23.2 |
| Width (In.) | 13 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
