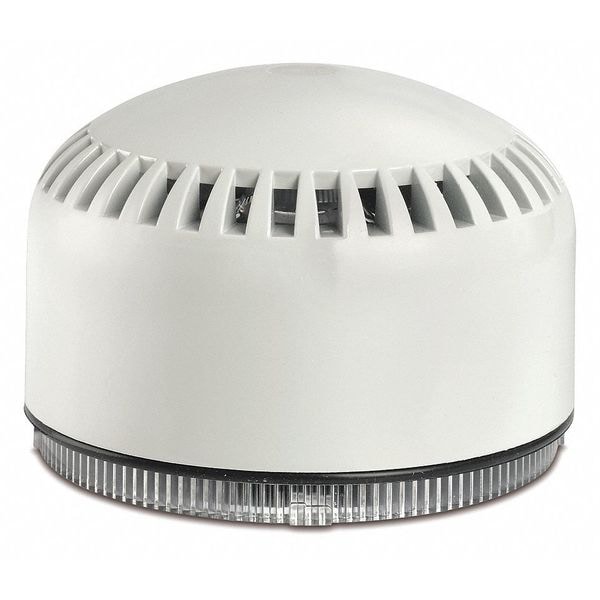

Electronic Sounder, Gray Lens, 35 to 240mA
| Item | Electronic Sounder |
|---|---|
| Housing Material | Polycarbonate |
| Mounting | Surface, Conduit, Base |
| Amps | 35 to 240mA |
| Diameter | 3.9063 in |
| Color | Grey |
| Audible Alarm Type | Siren |
| Voltage | 12 to 24V AC/DC, 120 to 240V AC |
| Standards | CE, cUL Listed, UL Listed |
| Indoor/Outdoor | Indoor, Outdoor |
| Decibels | 55 to 95dB, 65 to 105dB |
| Sound Pattern | Continuous |
| Vibrating | No |
| Housing Color | Gray |
| Visual Indicator Type | No Visual Indicator |
| Lens Color | Gray |
| Depth | 3.9063 in |
| Width | 3.9063 in |
| Includes | Top Module |
| Operating Temp. | -22 Degrees to 122 Degrees F |
| Current Drawn | 35 to 240mA |
| Height | 2-7/16 in |
| Alarm Type | Audible |
| Power Source | Wire |
| Overall Width | Not Applicable |
| Features | Produces Two Tones at Three Adjustable Tone Levels |
| Overall Depth | 2-7/16 in |
| Product Type | Sounder Module |
| Material | Ate, PolycarboN |
| Rating | IP 65, NEMA 3R |
| Overall Length | Not Applicable |
| NEMA Rating | NEMA 3R |
| For Hazardous Location | Not Applicable |
| Alarm Volume @ 1 m - Maximum | 105 dBA |
| Operating Current | 0.060 A @ 24DC, 0.085 A @ 12V DC, 0.090 A @ 240V AC, 0.125 A @ 120V AC, 0.190 A @ 24V AC, 0.280 A @ 12V AC |
| Operating Temperature - Maximum | 131 deg F |
| Legend | Non applicable |
| Volume Selection | Not Applicable |
| Wattage | Not Applicable |
| Operating Temperature - Minimum | -40 deg F |
| Number of Sound Patterns | Not Applicable |
| Control Protocol | Direct Wire |
| Sound Style | Siren |
| Alarm Volume @ 10 ft - Minimum | 76 dBA |
| Overall Diameter | 3-7/8 in |
| Vibration | No Vibration |
| Includes Mounting Hardware | Not Applicable |
| Sound Principle | Not Applicable |
| Alarm Volume @ 1 m - Minimum | 86 dBA |
| IP Rating | IP65 |
| Alarm Volume @ 10 ft - Maximum | 95 dBA |
| Connection Type | Block |
| Sound Continuity | Continuous |
| Mounting Style | Surface Mount |
| For Location | Outdoor |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
