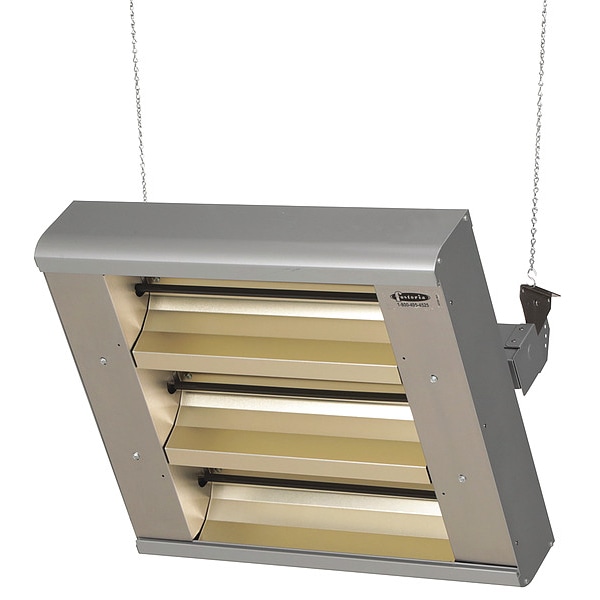

Electric Infrared Heater, 1 or 3 Phase, Aluminum, 240V AC
| Includes | (6) High Temperature Leads, 3 in Spacer Brackets, Elements, Guard |
|---|---|
| Item | Electric Infrared Heater |
| Number of Lamps | 3 |
| Beam Pattern | 60 deg |
| Housing Material | Aluminum |
| Element Type | Quartz Lamp |
| Infrared Electromagnetic Wave Type | Short Wave |
| Voltage | 240 V AC |
| Radiant Efficiency | 96 % |
| Standards | ETL Listed for US & Canada |
| Phase | 1, 3 |
| Amperage | 11.6A/20A |
| Max. Operating Temp. | Varies, based on distance from target & mounting height |
| Grille Width | 18-3/4 in |
| Housing Finish | Nickel-Gray |
| Overall Length | 24 in |
| Frequency | 50/60Hz |
| Heating Capacity | 16,832 BtuH |
| Electrical Connection | Hardwired |
| Voltage, Phase | 240V AC, 1 or 3-phase |
| For Use Outdoors | Indoor, Outdoor |
| Housing Color | Silver |
| Heater Mounting Position | Horizontal Burn |
| Mobility | Stationary |
| Grille Height | 16-1/2 in |
| Overall Dimensions - L x W x D | 24 in x 21-1/2 in x 11 in |
| Overall Width | 21-1/2 in |
| Reflector Material | Aluminum, Gold Anodized |
| Heating Method | Radiant |
| Wattage Output | 4,800 W |
| NEMA Plug Configuration | Hard wired |
| Overall Depth | 11 in |
| Housing Material, Housing Color | Aluminum, Silver |
| Grille Material | Stainless Steel |
| Grille Depth | 1/8 in |
| Brightness | 38,400 lm |
| For Use Indoors/Outdoors | Indoor, Outdoor |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
