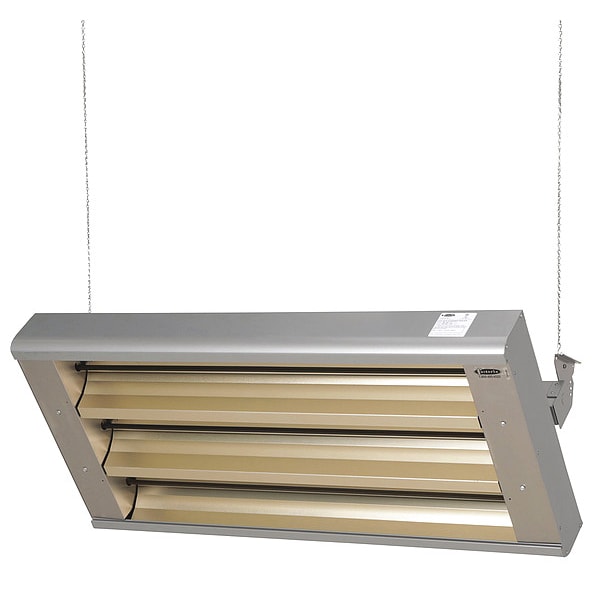

Electric Infrared Heater, 1 or 3 Phase, Aluminum, 480V AC
| Includes | (6) High Temperature Leads, 3 in Spacer Brackets, Elements, Guard |
|---|---|
| Item | Electric Infrared Heater |
| Number of Lamps | 3 |
| Beam Pattern | 30 deg |
| Housing Material | Aluminum |
| Infrared Electromagnetic Wave Type | Short Wave |
| Radiant Efficiency | 96 % |
| Phase | 1, 3 |
| Standards | ETL Listed for US & Canada |
| Voltage | 480 V AC |
| Element Type | Quartz Lamp |
| Heater Mounting Position | Horizontal Burn |
| Electrical Connection | Hardwired |
| Amperage | 13.2A/22.9A |
| Overall Depth | 11 in |
| Housing Color | Silver |
| Grille Material | Stainless Steel |
| Grille Height | 38-1/2 in |
| Housing Material, Housing Color | Aluminum, Silver |
| Wattage Output | 10,950 W |
| Voltage, Phase | 480V AC, 1 or 3-phase |
| Grille Depth | 1/8 in |
| Overall Dimensions - L x W x D | 46 in x 21-1/2 in x 11 in |
| Housing Finish | Nickel-Gray |
| Overall Length | 46 in |
| Max. Operating Temp. | Varies, based on distance from target & mounting height |
| For Use Outdoors | Indoor, Outdoor |
| Overall Width | 21-1/2 in |
| Heating Method | Radiant |
| Mobility | Stationary |
| Frequency | 50/60Hz |
| Heating Capacity | 37,372 BtuH |
| NEMA Plug Configuration | Hard wired |
| Reflector Material | Aluminum, Gold Anodized |
| Brightness | 87,600 lm |
| Grille Width | 18-3/4 in |
| For Use Indoors/Outdoors | Indoor, Outdoor |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
