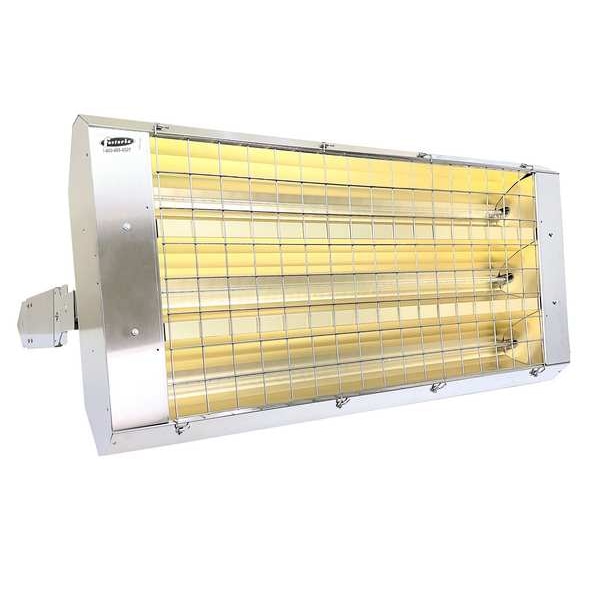

Infrared Quartz Electric Heater, 1, 3 Phase, Stainless Steel, 480V AC
| Includes | (3) Clear Quartz Lamp, High Temperature Lead |
|---|---|
| Item | Infrared Quartz Electric Heater |
| Number of Lamps | 3 |
| Beam Pattern | 30 deg |
| Housing Finish | Stainless Steel |
| Infrared Electromagnetic Wave Type | Short Wave |
| Radiant Efficiency | 96 % |
| Overall Dimensions - L x W x D | 46 in x 21-1/2 in x 11 in |
| Voltage | 480 V AC |
| Frequency | 50/60 Hz |
| Heater Mounting Position | Horizontal Burn |
| Voltage, Phase | 480 V AC, 1 or 3-Phase |
| Heating Method | Radiant |
| Reflector Material | Gold Anodized Aluminum |
| Overall Length | 46 in |
| Heating Capacity | 37,372 BtuH |
| Phase | 1, 3 |
| For Use Outdoors | Indoor, Outdoor |
| Mobility | Stationary |
| Overall Height | Not Applicable |
| Standards | ETL Listed |
| Housing Color | Silver |
| Electrical Connection | Hardwired |
| Overall Width | 21-1/2 in |
| NEMA Plug Configuration | Hard wired |
| Wattage Output | 10,950 W |
| Overall Depth | 11 in |
| Housing Material | Stainless Steel |
| Grille Depth | Not Applicable |
| Element Type | Quartz Lamp |
| Brightness | 8 lm |
| For Use Indoors/Outdoors | Indoor, Outdoor |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
