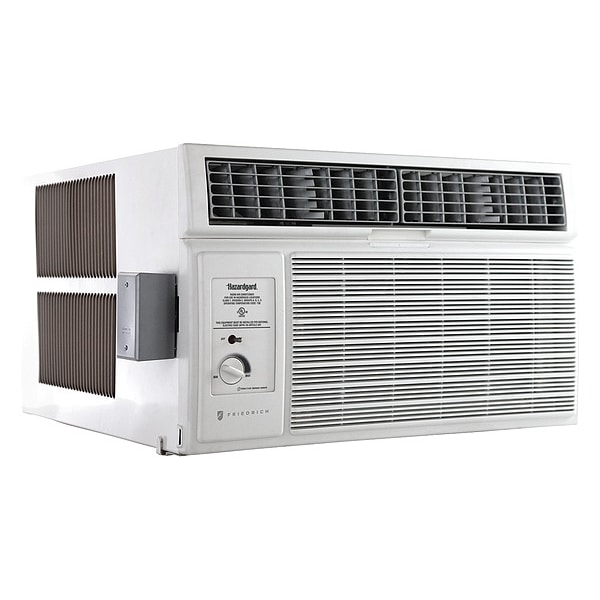

Through-the-Wall Air Conditioner, 208/230V AC, 14,500 BtuH, 25 15/16 in W.
| Item | Through-the-Wall Air Conditioner |
|---|---|
| Voltage | 208/230V AC |
| BtuH Cooling | 14,500 |
| Width | 25-15/16 in |
| Height | 15-15/16 in |
| Includes | Chassis |
| Watts | 1443/1495 W |
| Depth | 27-3/8 in |
| Item - Air Conditioners and Heat Pumps | Hazardous Location Air Conditioner |
| Fan Speeds Cooling | 1 |
| Color | White |
| Standards | ANSI/UL 484, UL Listed, ISA 12.12.101, NFPA 70 |
| Min. Window Height | 18 in |
| Chassis Type | Slide Out |
| BtuH | 14,000/14,500 |
| Hz | 60 |
| Max. Wall Thickness | 6 in |
| Max. Window Width | 42 in |
| High CFM | 375 |
| Refrigerant Type | R-410a |
| Voltage - Air Conditioners and Heat Pumps | 208/230VAC |
| EER | 9.7 |
| Air Flow Direction | Eight-Way |
| Fan-Only Speeds | 1 |
| Amps | 7.5/6.9 A |
| Min. Window Width | 27-3/8 in |
| Sleeve | Yes |
| Control Type | Mechanical |
| Dehumidification | 6 pph |
| Heating Method | Not Applicable |
| Weight | 140 lb |
| CEER Rating | Not Applicable |
| Dehumidification Rate | 4 lb/hr |
| Compressor Type | Rotary |
| Fits Wall Sleeve Dimensions | 15-15/16" x 25-15/16" x 27-3/8" |
| Duty Rating | Commercial Grade |
| Cooling Capacity | 15,500 BtuH |
| Number of Speeds | 1 |
| Remote Control Functions | No Remote Control |
| Smart Connectivity | No Connectivity |
| Programming Capability | Not Programmable |
| NEMA Plug Configuration - HVAC | Not Applicable |
| Operation Mode - HVAC | Cooling Only |
| Mounting Sleeve Included | Sleeve Included |
| Seacoast Corrosion Protection | Rear Coil |
| Fits Wall Sleeve - H x W x D | 15 15/16 in x 25 15/16 in x 27 3/8 in |
| Hazardous Location Division | Division II |
| Cooling Capacity - Maximum | 15,700 BtuH |
| Electric Heating Capacity - Minimum | Not Applicable |
| Power Source | Hardwired |
| Sleeve Length | 27-3/8 in |
| Heating Capacity - Electric | Not Applicable |
| Sleeve Height | 15-15/16 in |
| Hazardous Location Rating | Group A, Group B, Group C, Group D |
| Coverage Area - Minimum | 550 sq ft |
| Sleeve Width (In.) | 25-15/16 in |
| Coverage Area - Maximum | 700 sq ft |
| Hazardous Location Class | Class I |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
