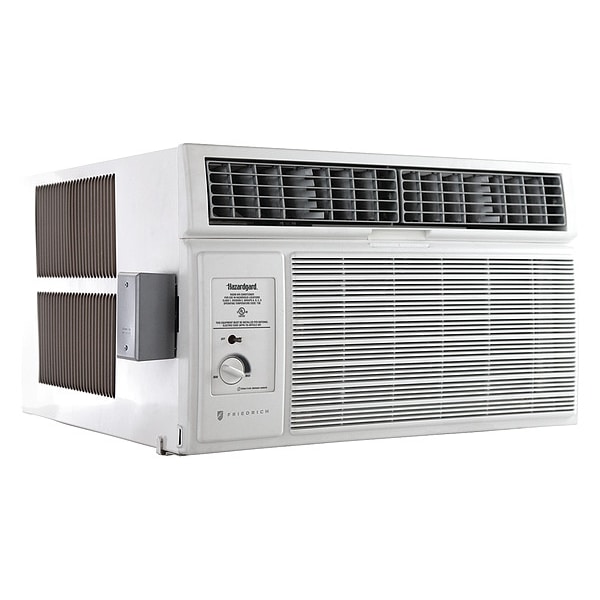

Through-the-Wall Air Conditioner, 208/230V AC, 19,500 BtuH, 25 15/16 in W.
| Item | Through-the-Wall Air Conditioner |
|---|---|
| Voltage | 208/230V AC |
| BtuH Cooling | 19,500 |
| Width | 25-15/16 in |
| Height | 17-15/16 in |
| Includes | Chassis |
| Watts | 1965/1970 W |
| Depth | 27-3/8 in |
| EER | 9.6/9.7 |
| Voltage - Air Conditioners and Heat Pumps | 208/230VAC |
| Hz | 60 |
| BtuH | 19,000/19,000 |
| Remarks | Fan Runs Continuous When Unit is Switched On, Thermostat Cycles Compressor, Hot Gas Bypass Low Ambient Control to Permit Operation Without Freezing At Outdoor Ambient Temperature As Low As 45 F, Hermetically Sealed Refrigeration System, Run Capacitor Withstands Voltage Overloads Up to 440 Volts, Utilizes Direct-Wired, 15-Amp Circuit With Time-Delay Fuse That Will Tolerate Surge Current Without Tripping The Breaker |
| Dehumidification | 5.5 pph |
| Color | Gray |
| Max. Window Width | 42 in |
| Sleeve | Yes |
| Amps | 8.5/9.4 A |
| Air Flow Direction | Eight-Way |
| High CFM | 375 |
| Fan Speeds Cooling | 1 |
| Fan-Only Speeds | 1 |
| Standards | ANSI/UL 484, UL Listed, ISA 12.12.101, NFPA 70 |
| Control Type | Mechanical |
| Min. Window Height | 18-3/16 in |
| Max. Wall Thickness | 6 in |
| Min. Window Width | 27-7/8 in |
| Item - Air Conditioners and Heat Pumps | Hazardous Location Air Conditioner |
| Chassis Type | Slide Out |
| Refrigerant Type | R-410a |
| Heating Method | Not Applicable |
| Compressor Type | Rotary |
| Weight | 166 lb |
| CEER Rating | Not Applicable |
| Dehumidification Rate | 5.5 lb/hr |
| Mounting Sleeve Included | Sleeve Included |
| Smart Connectivity | No Connectivity |
| Fits Wall Sleeve Dimensions | 17-15/16" x 25-15/16" x 27-3/8" |
| Programming Capability | Not Programmable |
| Operation Mode - HVAC | Cooling Only |
| Cooling Capacity | 21,000 BtuH |
| Seacoast Corrosion Protection | Rear Coil |
| NEMA Plug Configuration - HVAC | Not Applicable |
| Number of Speeds | 1 |
| Duty Rating | Commercial Grade |
| Remote Control Functions | No Remote Control |
| Fits Wall Sleeve - H x W x D | 17 15/16 in x 25 15/16 in x 27 3/8 in |
| Includes Air Filter | Air Filter Included |
| Cooling Capacity - Maximum | 21,600 BtuH |
| Hazardous Location Division | Division II |
| Sleeve Width (In.) | 25-15/16 in |
| Heating Capacity - Electric | Not Applicable |
| Coverage Area - Minimum | 700 sq ft |
| Coverage Area - Maximum | 1,000 sq ft |
| Sleeve Length | 27-3/8 in |
| Hazardous Location Rating | Group A, Group B, Group C, Group D |
| Hazardous Location Class | Class I |
| Sleeve Height | 17-15/16 in |
| Electric Heating Capacity - Minimum | Not Applicable |
| Power Source | Hardwired |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
